Product Details:
|
| Item Name: | Cleanroom | Frame: | Aluminum Profile, Stainless Steel Profile, Steel Profile |
|---|---|---|---|
| Wall: | Magnesium Sandwich Panel | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | After-sales Service Provided: | Online Support, Video Support, |

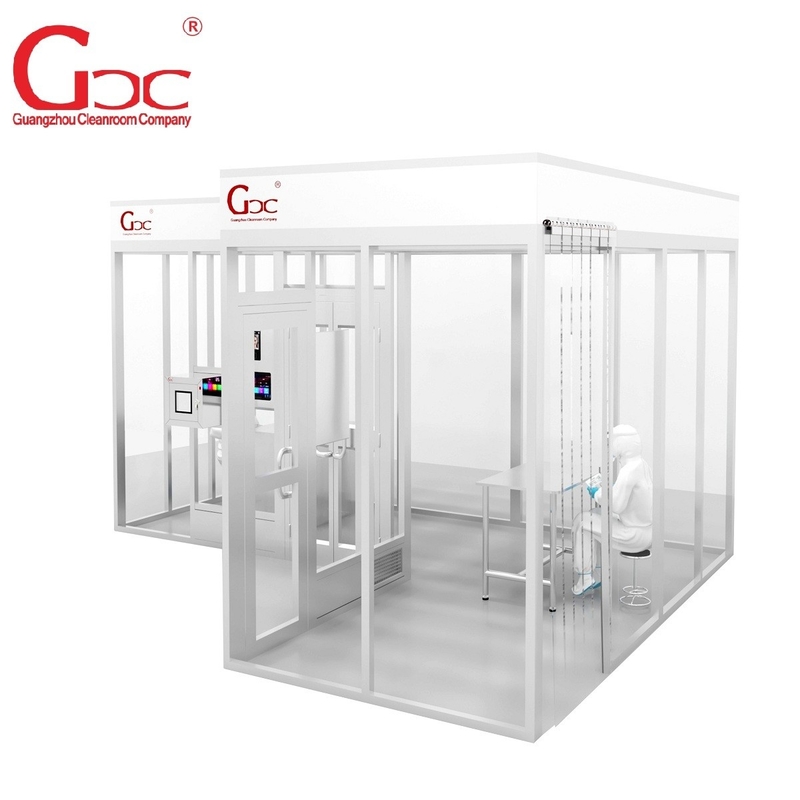

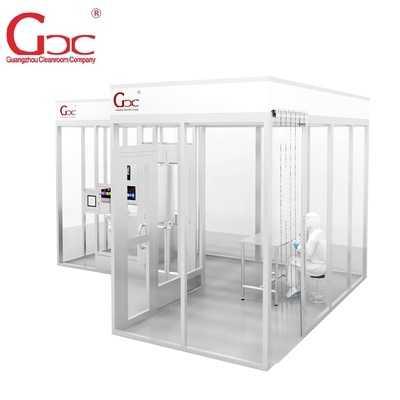

| Highlight: | 4pcs FFU Mobile Clean Room,30m2 Mobile Clean Room,4pcs FFU class 10k clean room |
||
Cleanroom is a special designed room to exclude the particles in the air, bacteria and other harmful air pollutants, and the indoor temperature, cleanliness, interior pressure, air velocity and air distribution, noise, vibration, and lighting, static control within the scope of a certain demand. That is no matter how the outside air conditions change, its indoor all can maintain the original set requirements of cleanliness, temperature and humidity and pressure performance characteristic.
Features
1. Temperature and Relative Humidity
2. Air Velocity, Air Change Rate (ACR), and Static Pressure
3. Keeping Out Dust, Bacteria, and Other Contaminants
Proper calibration of the above conditions forms a sort of "microclimate" that is inhospitable to contaminants such as dust particles and bacteria. Meeting standards is a result of proper maintenance of the cleanroom. Regular, thorough testing is the only best practice, especially in a field where product contamination can lead to serious consequences.
Level Of Airborne Particulate Cleanliness In Prefab Cleanrooms
| Level | Maximum Particles/m3 | Equivalent | |||||
| ≥0.1 μm | ≥0.2 μm | ≥0.3 μm | ≥0.5 μm | ≥1 μm | ≥5 μm | ||
| ISO 1 | 10b | d | d | d | d | e | |
| ISO 2 | 100 | 24b | 10b | d | d | e | |
| ISO 3 | 1000 | 237 | 102 | 35b | d | e | Class 1 |
| ISO 4 | 10000 | 2370 | 1020 | 352 | 83b | e | Class 10 |
| ISO 5 | 100000 | 23700 | 10200 | 3520 | 832 | d,e,f | Class 100 |
| ISO 6 | 1000000 | 237000 | 102000 | 35200 | 8320 | 293 | Class 1,000 |
| ISO 7 | c | c | c | 352000 | 83200 | 2930 | Class 10,000 |
| ISO 8 | c | c | c | 3520000 | 832000 | 29300 | Class 100,000 |
| ISO 9 | c | c | c | 35200000 | 8320000 | 293000 | Room Air |
Specification Table
| Area | 15㎡ | 30㎡ | 50㎡ | 100㎡ |
| Material | Aluminum frame/Baking steel plate/lnsulating glass window | |||
| FFU class 1-100 | 12pcs | 24pcs | 48pcs | 96pcs |
| FFU class-1K | 3pcs | 6pcs | 9pcs | 18pcs |
| FFU class-10K | 2pcs | 4pcs | 6pcs | 12pcs |
| Speed (m/s) | 0.45m/s ±20% | 0.45m/s ±20% | ||
| Temperature (optional) | 18-28°C | |||
| Humidity (opiional) | 50-70% | 50-70% | ||
| Illumination | 400-800LUX | |||
| Power | 2.4-7kw | 4.8-10kw | 9.6-19kw | 19.2-30kw |
Our Strength
Besides designing your cleanroom, GCC can advise on how to implement management systems to maintain your cleanroom and minimize the risk for contamination.
