Product Details:
|
| Item Name: | Cleanroom Air Shower | Material: | Stainless Steel |
|---|---|---|---|
| Case Pack: | One Piece | Function: | Air Filtration |
| Usag: | Clean Room Entrance | Applicable Industries: | Manufacturing Plant, Food & Beverage Factory |
| Highlight: | 12pcs Nozzles Cleanroom Air Shower,110V Cleanroom Air Shower,110V clean room shower |
||

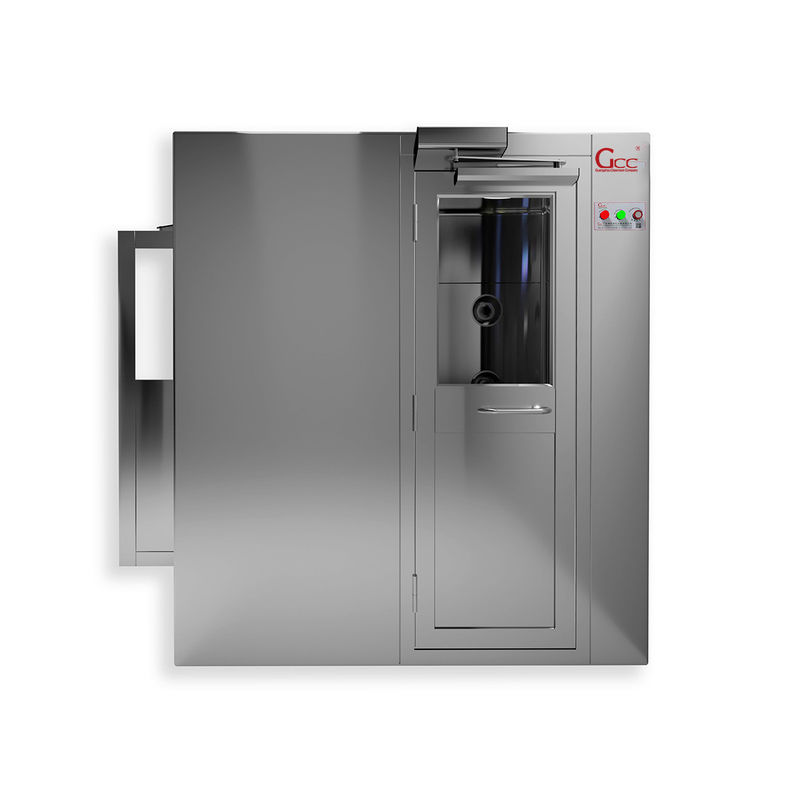

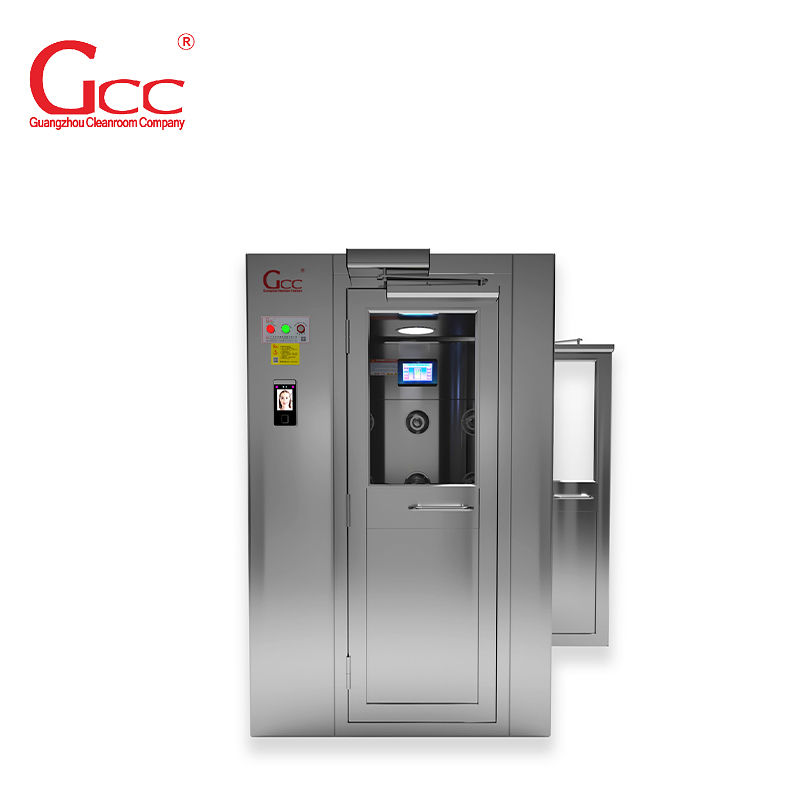

Air shower is a necessary part for person or goods entering into the clean room in order to minimize the amount of particulate contaminants. Personnel move through the air shower while particulate contaminants are blew off by the clean high velocity. The high air velocity of 25m/s ensures the efficiency. Contaminated air is then taken in through the base of the unit, filtered and re-circulated into the chamber.
GCC is leader in air shower for demanding application in the micro-electronics, semiconductors, pharmaceutical, spray-painting, lab, animal research and food market.
Features
1. Fully auto controlled by computer, interlocking door, automatically blow and shower.
2. Duration for showering can be adjusted from 0 second to 99 seconds with time showed on LPC board.
3. Made of stainless steel.
4. Efficiency can reach 99.99%@0.3μm with Pre filter and Hepa filter.
5. Air velocity can up to 25·30m/s.
6. OEM is acceptable.
Parameters
| Item | Cleanroom Air Shower | ||||||
| External Size | 1200*1000*2180mm | 1860*790*1910mm | 2860*790*1910mm | ||||
| Internal Size | 800*930*1910mm | 2000*1400*2050mm | 3000*1400*2050mm | ||||
| User | 1-2 | 2-4 | 3-6 | ||||
| Power Supply | 110V/120V/220V/230V/240V/380V | ||||||
| Fan Air Volume | 1200(m³/h) | ||||||
| Fan Speed | 2800r/min | ||||||
| Air Velocity | 25-30m/s | ||||||
| Stainless Steel Nozzles | 12pcs | 24pcs | 36pcs | ||||
| Noise | <62dB | ||||||
| HEPA Filter | Size | 595*595*69mm | |||||
| Efficient | 99.99%@0.3um | ||||||
| Air Volume | 1000m³/h | ||||||
| Initial Resistance | <220pa | ||||||
|
Pre-Filter |
Size | 785*385*21mm | |||||
| Efficient Level | G3 | ||||||
| Air Volume (m³/h) | 85%@2um | ||||||
| Initial Resistance | <30pa | ||||||
Alternative Configurations
a. Material
b. Intercom
c. Ultraviolet sterilizing lamp/yellow light
d. Buzzer
e. Door
f. Size
Application
Cleanroom air shower is widely used in LCD and Optoelectronic Display, PCB, microelectronics, dust-free coating, aseptic
packaging, medical care, Pharmacy,auto glass and precision parts.
