Product Details:
|
| Keyword: | Clean Room | Application: | Pharmaceutical Workshop, Electronic Workshop, Food Shop Etc |
|---|---|---|---|
| Material: | Stalinite/Stainless Steel/ Aluminum | Style: | Standard Design |
| Type: | Modular Clean Room | Function: | Get Rid Of Dirt From People |
| Feature 1: | Easy To Install And Save Time | Feature 2: | Modular Structure,easy To Improve Cleanliness Level |
| Feature 3: | High Efficiency | Voltage: | 220V/50HZ |
| Warranty: | 1 Year | Condition: | New |
| After-sales Service Provided: | Online Support | Remark: | Can Be Customized |
| Highlight: | ISO9 Modular Clean Room,All steel frame iso class 9 clean room,Easy Moveable ISO9 portable clean room |
||

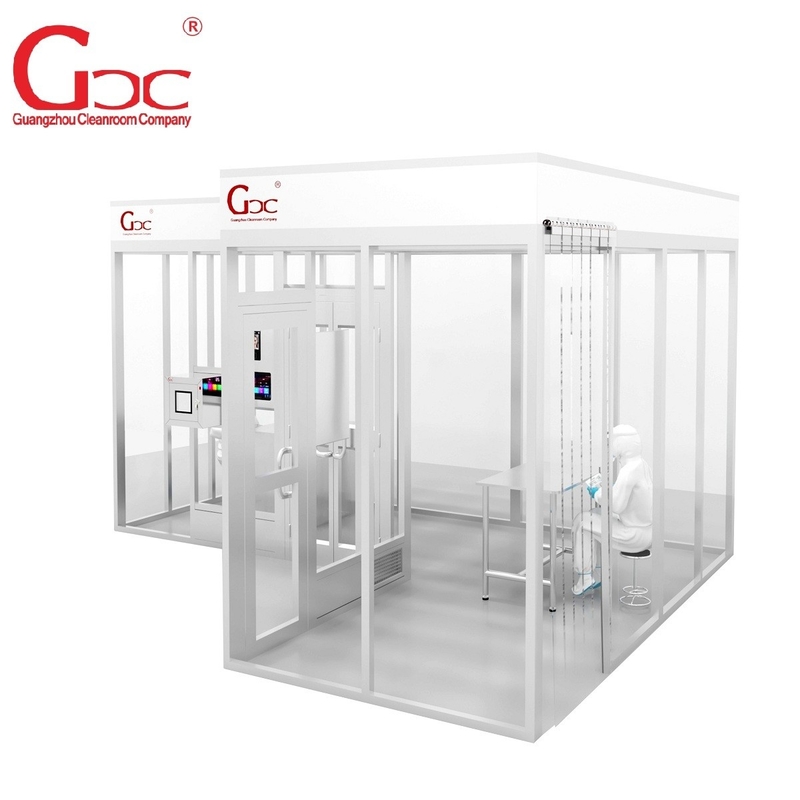

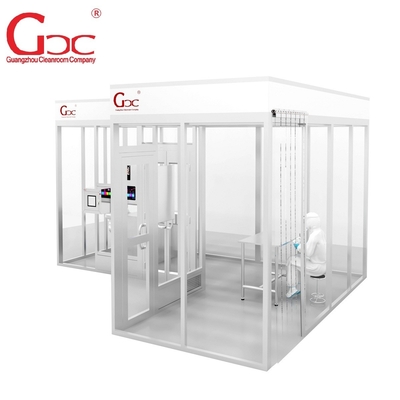

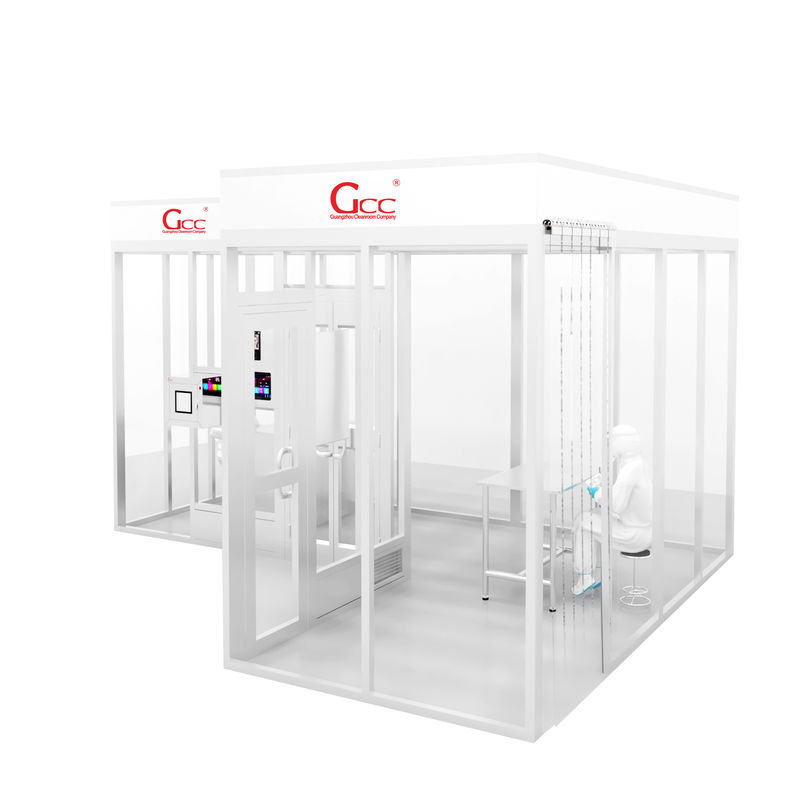

Modular clean booth is a simple modular clean room. it is using elasticity, easy to install, short construction period and portability. Soft wall Cleanroom (Clean booth) allows you to build an economical cleanroom (clean booth) in nearly any office or production space in just a few days.
All steel frame supports ceiling grid, flexible vinyl strip shields, fluorescent lighting and fan / filter units to meet cleanliness requirements from ISO 5 – 8(clean booth). Clean booth Shields are made of static-dissipative PVC or Acrylic Sheet to control electro-static discharge.
Level Of Airborne Particulate Cleanliness In Prefab Cleanroom
| FED STD 209E | ||||||
| Level | >=0.1um | >=0.2um | >=0.3um | >=0.5um | >=5um | Equivalent |
| 1 | 35 | 7 | 3 | 1 | ISO3 | |
| 10 | 350 | 75 | 30 | 10 | ISO4 | |
| 100 | 100 | ISO5 | ||||
| 1000 | 1000 | 7 | ISO6 | |||
| 10000 | 10000 | 70 | ISO7 | |||
| 100000 | 100000 | 700 | ISO8 | |||
| ISO 14644-1 Cleanroom Standards | |||||||
| Level | >=0.1um | >=0.2um | >=0.3um | >=0.5um | >=1um | >=5um | Equivalent |
| ISO1 | 10 | 2 | |||||
| ISO2 | 100 | 24 | 10 | 4 | |||
| ISO3 | 1000 | 237 | 102 | 35 | 8 | 1 | |
| ISO4 | 10000 | 2370 | 1020 | 352 | 83 | 10 | |
| ISO5 | 100000 | 23700 | 10200 | 3520 | 832 | 29 | 100 |
| ISO6 | 1000000 | 237000 | 102000 | 35200 | 8320 | 293 | 1000 |
| ISO7 | 352000 | 83200 | 2930 | 10000 | |||
| ISO8 | 3520000 | 832000 | 29300 | 100000 | |||
| ISO9 | 35200000 | 8320000 | 293000 | Room Air | |||
Following options are available
1. Pass box
2. Air shower
3. ULPA filter
4. Sticky mats
5. Barometer
6. Gowning area
7. Pressure different control device
8. Transparent/grid PVC curtain
9. Thermo-static and humid-static air conditioning system.
