Modular Workshop 30m2 Prefab Cleanroom With HEPA ULPA Filters

Certification
China Guangzhou Cleanroom Construction Co., Ltd. certification
China Guangzhou Cleanroom Construction Co., Ltd. certification
I'm Online Chat Now

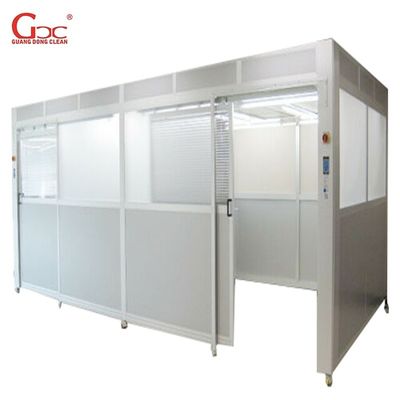

Modular Workshop 30m2 Prefab Cleanroom With HEPA ULPA Filters

Modular Workshop 30m2 Prefab Cleanroom With HEPA ULPA Filters
Modular Workshop 30m2 Prefab Cleanroom With HEPA ULPA Filters

Large Image :  Modular Workshop 30m2 Prefab Cleanroom With HEPA ULPA Filters

Product Details:
Place of Origin: China
Brand Name: GCC
Certification: QS/SC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Plywood Box
Delivery Time: 14-30 Workdays
Payment Terms: T/T, L/C
Supply Ability: 1000 Sets/Month

Modular Workshop 30m2 Prefab Cleanroom With HEPA ULPA Filters

Description
Project: Modular Workshop Cleanroom Style: Simple
Frame: Aluminum Profile, Stainless Steel Profile, Steel Profile Wall: Magnesium Sandwich Panel
Characteristic: Control Air Cleanliness Using Field: Workshop
Highlight:

HEPA ULPA Filters Prefab Cleanroom

,

30m2 Prefab Cleanroom

,

30m2 modular clean room

Modular Cleanrooms

Modular cleanrooms are facilities that are designed for the purpose of certain fields of research such as biological or chemical research, and also for the manufacturing of certain high precision products. Modular cleanrooms have a logarithmic classification system that follows a grading scale based on a number of allowable particulates in the air. Class one rooms have 1 particle for every 0.5 micrometers of cubic space and so on. The class number resembling the maximum amount of particles allowed in 0.5 cubic micrometers.

Modular Cleanroom Wall Systems

As for filtration systems, modular cleanrooms often use HEPA filters and ULPA filters. These filters can remove up to 99.9% of the particulates in the air using various airflow technique. Some modular cleanrooms employ a positive pressure to keep particles out, and then some employ negative pressure to keep contaminants in. The application you will be using your modular cleanroom for will determine whether you will need a positive or negative pressure cleanroom. It is no surprise that the need for a cleanroom can be overwhelming. Panel Built can help with the confusion. The Cleanroom Wall Panels, windows, and doors common to our in-plant modular office system already meet your Class 1000, Class 10,000, and Class 100,000 cleanroom wall system needs. Our sales staff has the knowledge to combine our wall panel system with the appropriate cleanroom components to ensure your cleanroom meets strict ISO requirements.

Modular Cleanroom Features

a. HEPA and ULPA Cleanroom Filters

b. Single package air-conditioning

c. “Sticky Mats” to keep dirt and grim from entering

d. Air curtains

e. High speed roll-up doors

f.  Anterooms - Entrance air-lock before entering cleanroom



Parameters



Area 15㎡ 30㎡ 50㎡ 100㎡
Material Aluminum frame/Baking steel plate/lnsulating glass window
FFU class 1-100 12pcs 24pcs 48pcs 96pcs
FFU class-1K 3pcs 6pcs 9pcs 18pcs
FFU class-10K 2pcs 4pcs 6pcs 12pcs
Speed
(m/s)
0.45m/s ±20% 0.45m/s ±20%
Temperature
(optional)
18-28°C
Humidity
(opiional)
50-70% 50-70%
Illumination 400-800LUX
Power 2.4-7kw 4.8-10kw 9.6-19kw 19.2-30kw



Modular Cleanroom Options



1. Class 1,000 , 10,000 , and 100,000



2. Hidden in-wall air chase



3. Filtered air-return louver



4. Ducting for FFU



5. Adjustable door louver
