Product Details:
|
| Key Word: | Pharmaceutical Weighing Booth | Material: | Stainless Steel |
|---|---|---|---|
| Style: | Standard Design | Function: | A Dedicated Purification Equipment For Sampling, Weighing And Analysis |
| Warranty: | 1 Year | After-sales Service Provided: | Online Support |
| Highlight: | 500Lux Pharmaceutical Weighing Booth,Uniform flow Pharmaceutical Sampling Booth,500Lux sampling booth in pharma |
||

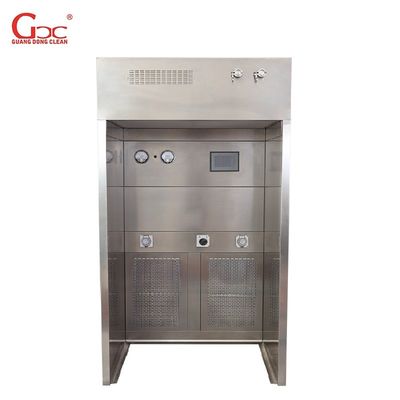

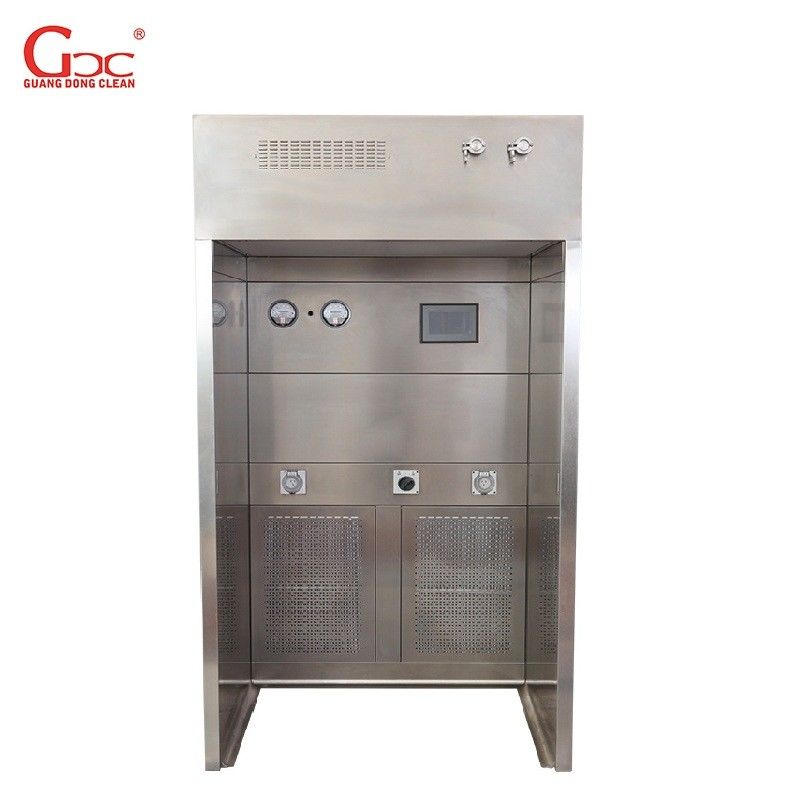

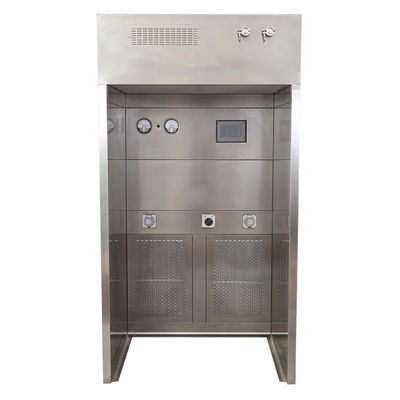

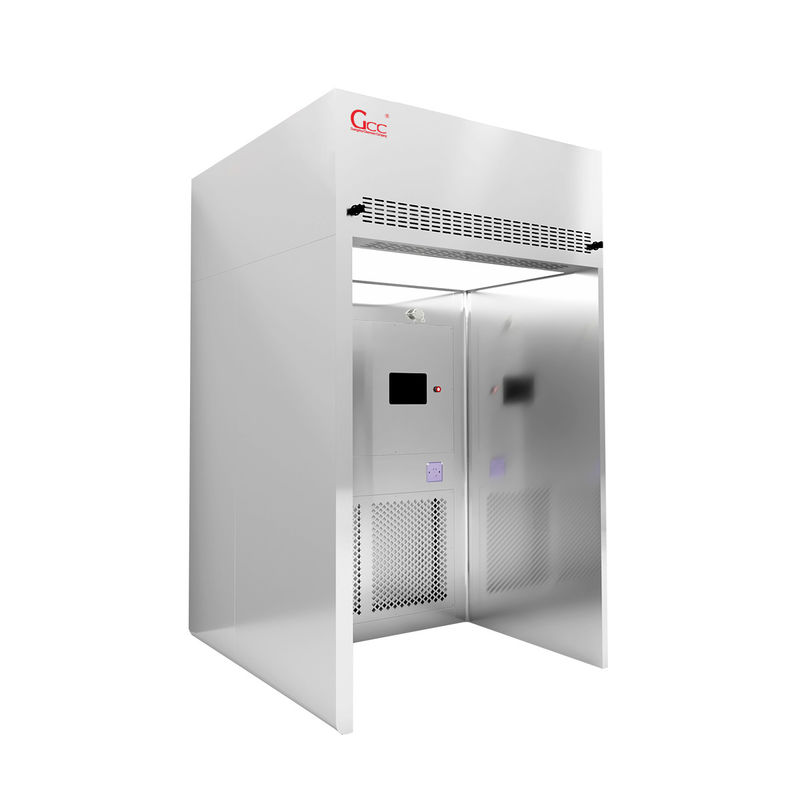

Pharmaceutical weighing booth also know as laminar flow booth, dispensing booth is for the pharmaceutical, microbiological research and scientific experiments and other places dedicated local purification equipment, which provides a vertical unidirectional airflow, some clean air circulation in the work area, partly discharged to the nearby area, so that the work area produce negative pressure to prevent cross contamination in order to ensure the high clean class level of the working area.
Main Features
1. Unique designed air duct effectively controls the noise.
2. Smooth transitions of wall and ground can eliminate the blind angle.
3. Differential pressure gauge is equipped to real-time monitor the filters.
4. Intelligent control mode and alarm system ensure the reliability of running.
5. Automatic changeable frequency system monitors the air velocity to ensure its stability in the work area.
6. Uniform flow design of main working area can protects the operators and prevent environmental pollution and cross contamination of products.
7. Dispensing Booth(Sampling or Weighing Booth) has primary filters, medium efficiency filters and HEPA filters to keep air cleanliness of work area.
Parameters
| The Rated Air Flow | According To The Volume Of The Room |
| Total Power | 2KW |
| Total Pressure | 500Pa |
| Average Intensity of Illumination | 500Lux |
| Wind Speed | 0.45m/s |
| Control of Moter Speed | Frequency Converter |
| High Efficiency Filter | Reverse Flange Liquid Tank Filter |
| Material | Stainless Steel |
| Protection Object | Drugs, Operators, working conditions |
Using Environment and Conditions
Temperature: 5 ℃ -40 ℃
Relative humidity: less than 85%
Atmospheric pressure: 86kPa-106kPa
Power supply: AC220V, single phase, 50Hz.
Standard Model Technology Parameter:
Applications
for the pharmaceutical, microbiological research and scientific experiments and other places dedicated local purification equipment.
