Product Details:
|
| Products Name: | Electronic Dynamic Pass Box | Key Word: | Pass Box |
|---|---|---|---|
| Material: | Stainless Steel Or Steel | Interlock: | Mechanical Or Electronic |
| After-Sales Service Provided: | Online Support | Power Supply: | 220V/50HZ |
| Highlight: | AC220V Stainless Steel Pass Box,304 Stainless Steel Pass Box,AC220V dynamic pass box |
||

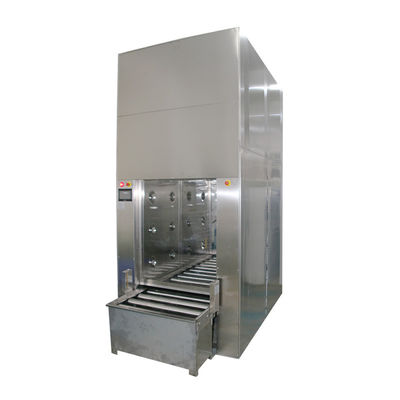

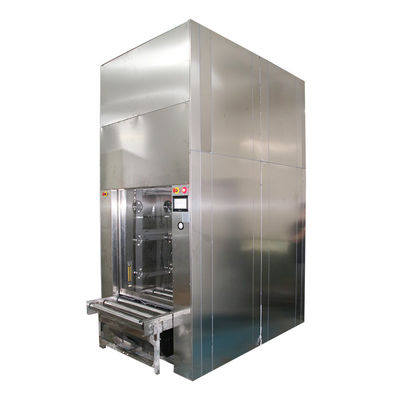

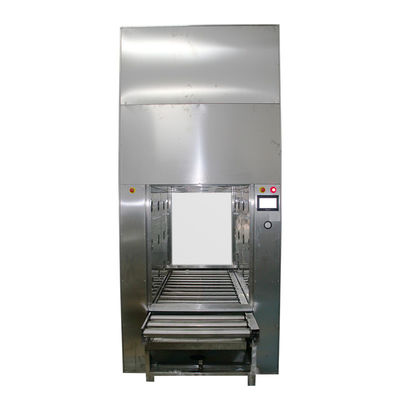

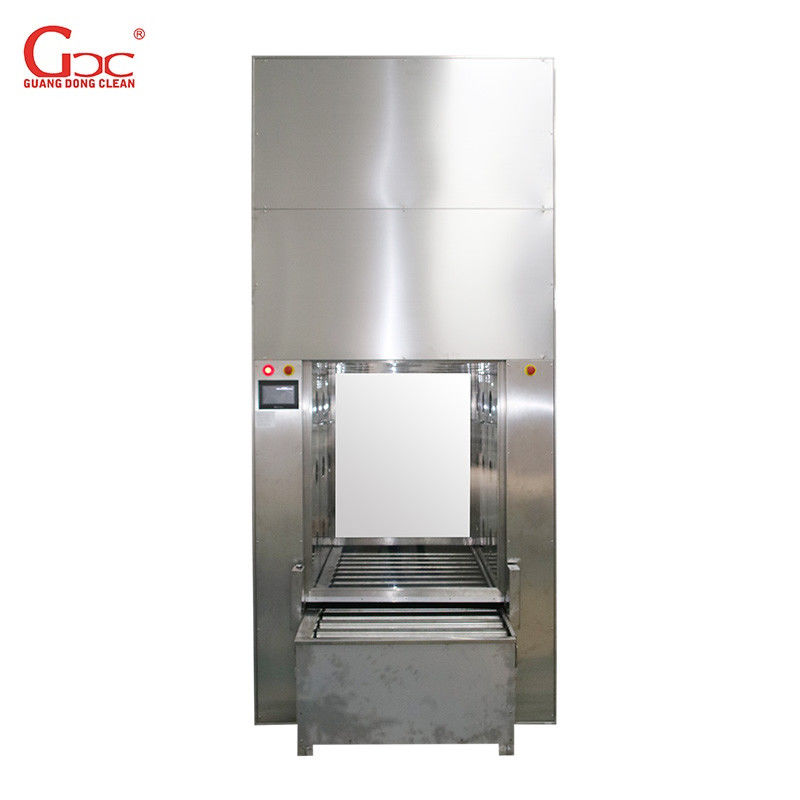

Electronic dynamic pass box is a device to keep the two areas at different grade from cross contaminants from one space to another during product or tool transfer. This is a safe and effective solution since they can keep the materials from contamination within a controlled environment. It can also be used to protect the materials from external contamination.
Features
Small sized high static Turbo blower can generate the high speed air so as to eliminate the chance of contamination in the Clean Room. It is able to add inter-com, pressure differential gauge, PAO port, and germicidal lamp. The construction material can be SUS or SGLC materials.
It is time saving and enables the convenient cargo transfer. All the sizes can be customized.
Specification
|
Model |
GCC-PBS |
|---|---|
|
Dimensions |
External:960 (W) x 1,700 (L) x 750 (D) |
|
Main filter |
HEPA x1pcs |
|
Efficiency |
Above 99.99% Efficient On 0.3µm Particle |
|
Pre-filter |
Non Woven Filter W/Aluminum Frame x2pcs |
|
Air Velocity |
Air Jet: 4 |
|
Air Volume |
23 |
|
Air Changes |
Air Jet : About 653 |
|
Nozzles Qty. |
Stainless Steel SUS304 x4 |
|
Construction |
Coldrolled Steel With Bake Painting |
|
Windows |
Transparent glass 5mm(t) |
|
Internal base |
Stainless Steel 304(HL) |
|
Electrical |
AC220V 3Φ 60HZ |
|
Power Consumption (VA) |
Air Jet:900 |
|
Component |
1.Buzzer attached light |
Operation and Control
a. When there’s no cargo transferring, in order to keep the space clean, the shower pass box would maintain the minimum showering.
b. With electro-interlocking system, it can prevent the door from opening so as to avoid the contamination during showering.
c. The showering time can be adjusted from 0~60 sec with the adjustable timer.
d. When the power is shut down, the electro-interlocking system will be released.
e. When one side of the door is opened, the buzzer and indicate light other side will be activated.
f. High speed showering will be activated after the cargo is sent into the shower pass box with door closed.
g.The sunk-in switch with transparent protective cover can prevent the switch from damaged.
Application
Cleanroom pass box are widely used in the clean environment, such as micro-electronics, laboratory, national defense, precise instrument, biopharming, opto-electronics, aseptic packaging, etc.
