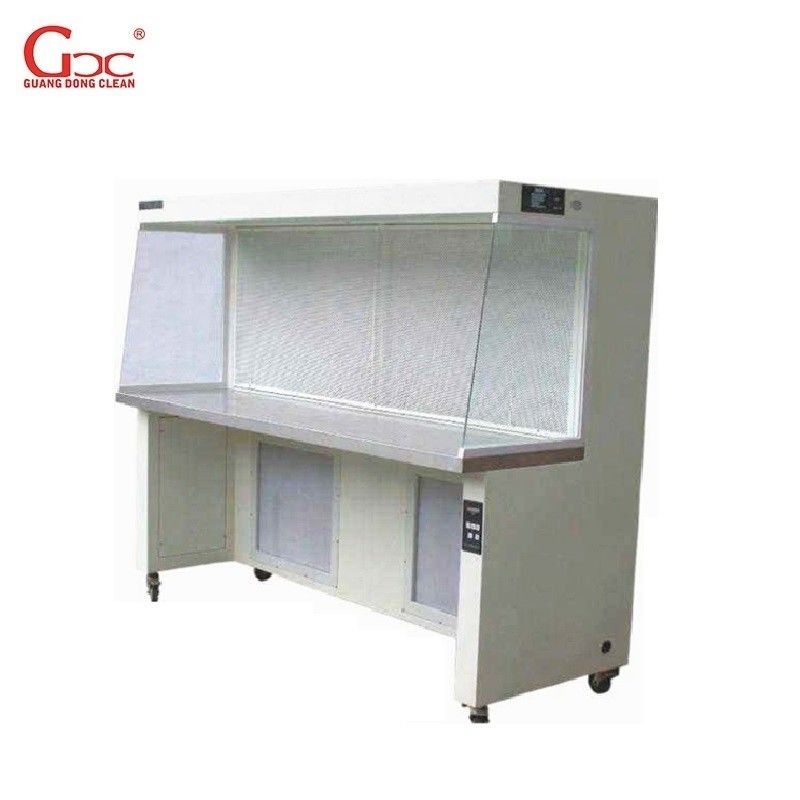

CE Certified Stainless Steel AC220V Laminar Flow Clean Bench

GCC Laminar Flow Bench

GCC laminar flow bench are engineered to provide the ideal particle-free, bacteria-free clean-air environment needed for laboratory work, testing, manufacturing, inspection, or pharmaceutical procedures. exclusive design innovations provide exceptional performance in the most demanding environments.

Applications

GCC laminar flow bench applications benefiting from clean rooms, electronics assembly, semiconductors, pharmaceutical .aerospace and medical devices industries, mycology and food microbiology, plant and mammalian Cell culture.

Features

1. Two models horizontal laminar flow and vertical laminar clean bench.

2.  According to using function are desktop and vertical clean bench,single people single side(two sides) and two people single side(two sides).

3.  The working surface is made of mirror stainless steel, easy to clean, corrosion-resistant.

4.  Equipped with many kinds filter to meet the customer’s purification degree requirements.

5.  LED microcomputer controller, adjustable fan speed.

6.  Operation door can be located any position.


Technical Parameter

A: Stainless steel interior (side panels and work surface) ensure optimal cleanliness and chemical resistance

for sensitive work in pharmaceuticals, biotechnology, and electronics

B: Multi-speed filter/blower modules provide a continuous wash of HEPA- or ULPA-filtered air.

C : Internal baffling plates and anodized aluminum diffuser panel ensure uniform air speed across
the work area

D: Face velocity is adjustable from less than 90 FPM (0.45 m/s) to higher than 130 FPM (0.66 m/s)

E: Built-in recessed illuminator provides diffused lighting without interfering with laminar flow

F: Electropolishing available to remove embedded subsurface particles in stainless steel surfaces

G: LED control board with CE remark, low operating noise levels

J: Stainless steel or antimicrobial coating on all painted surfaces minimizes contamination. Long –life HEPA

air filter for supply air flow.

H: American Dwyer pressure remind of you replace the HEPA filter in regular.

Quality Control

Factory testing (all the sets you ordered):
All of equipment is individually factory tested for safety and performance in accordance with international Standards.
Each unit is shipped with a documentation outlining the tests undertaken and the unit’s individual results for each unit.
Factory test include:
--appearance testing
--functional test and visual inspection
--air velocity testing
--noise testing

Suggestion

1. Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.

2. HEPA filter: each one should be replacement in each half and one years.
