Product Details:
|
| Tag: | HEPA Air Filter | Frame: | Stainless Steel |
|---|---|---|---|
| Filter Mesh: | High Temperature Resistance Glass Fiber Filter Paper | Filtration Efficiency: | H13, H14 |
| Maximun Temperature: | 400℃ | Maximun Humidity: | 80% |
| Highlight: | 400degree Stainless Steel HEPA Filter,400degree high temperature hepa filter,19.17m2 stainless steel hepa filter |
||

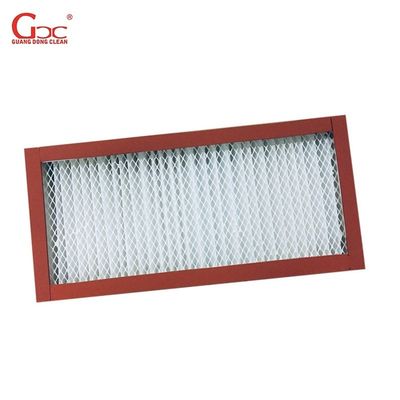

High temperature HEPA filter is an air filter that can can allow to work at 400°C . It uses the stainless steel frame and high quality glass fiber filter paper. It's widely used for the ultra clean oven in food, medicine factories, auto plant painting spray system or spraying industry, oven, chemical, ultrasonic industry and other high temperature purification sites.
Product Features
1. With partition design, high efficiency, low resistance and large dust holding capacity,
2. High Temperature Resistance, can used under 400℃,
3. Suitable for variable air volume systems.
Product Material Composition And Operating Conditions
|
Material |
Glass Fiber With Stainless Steel Frame |
|
Filtration Efficiency |
H13,H14 |
|
Permissible max relative temperature |
400℃ |
|
Permissible max relative humidity |
80% |
Product Parameters
|
Size |
Rated Air Rate |
Filter Area |
Initial Resistance |
Final Resistance |
Efficiency |
|
320*320*150mm |
250m³/h |
2.59㎡ |
≤200Pa |
400-600Pa |
H13 |
|
320*320*220mm |
500m³/h |
4.08㎡ |
H14 |
||
|
484*484*150mm |
600m³/h |
6.00㎡ |
H13 |
||
|
484*484*220mm |
1000m³/h |
9.46㎡ |
H14 |
||
|
610*610*150mm |
1000m³/h |
9.59㎡ |
H13 |
||
|
915*610*150mm |
1500m³/h |
14.38㎡ |
H14 |
||
|
1220*610*150mm |
2000m³/h |
19.17㎡ |
H13 |
Product Applications Area
High Temperature-Resistance HEPA Filter widely use for pharmacy, food, semiconductor, LCD and IC industry where production processes need ultra- clean oven cabinet or high temperature clean purification equipment and system.
