Product Details:
|
| Key Word: | Medium Pocket Air Filter | Material: | Glass Fiber Bag With Alumium Frame |
|---|---|---|---|
| Function: | Air Purification | Maximun Temperature: | 150℃ |
| Maximun Humidity: | 100% | Remark: | Change Every 3 Months |
| Highlight: | 3.18m2 Area Pocket Bag Filter,3.18m2 Area pocket air filter,F7 Medium Pocket Bag Filter |
||
The taper stitched pockets are self supporting to maintain stability and provide maximum use of the entire filtration area with minimal resistance to airflow under constant or variable air volume conditions.
Product Characteristic
1. It is woven specially with the superfine fibre,filter material content static electricity fibre.
2. Dust size: 1 or is smaller than 1micron)
3. High permeability
4. Long working life.
5. The large dust holding capacity, the high efficiency, the low damaged due to pressing;
6. Temperature resistance up to 150℃

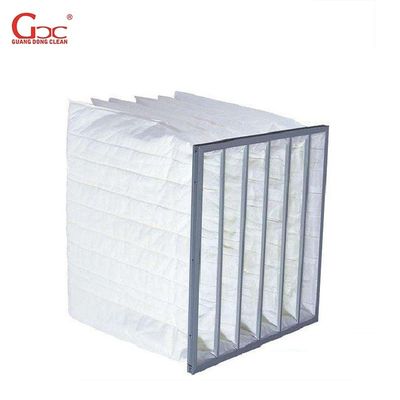

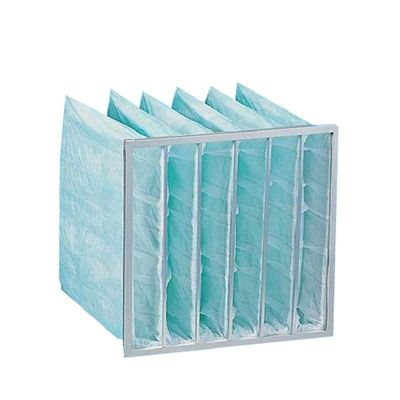

The galvanization frame (the outer edge thickness: 20mm and 25mm are all available)
The aluminum alloy frame (the outer edge thickness: 20mm and 25mm are all available)
Product Material Composition And Operating Conditions
| Material | Fiberglass Paper With Aluminum Frame |
| Filter Bag Type | Since The Bag Sewing |
| Filtration Efficiency | F5,F6,F7,F8(EN779) |
| Permissible Max Relative Temperature | 150℃ |
| Permissible Max Relative Humidity | 100% |
Product Parameters
|
Size (mm) |
Number of Bags |
Air Volume (m³/h) |
Filter Area (㎡) |
Initial Resistance (Pa) |
Initial Resistance (Pa) |
Efficiency |
| 287*592*381 | 3 | 1000 | 1.58 | <50 | 250-300 | F5 |
| <65 | 250-300 | F6 | ||||
| <80 | 300-400 | F7 | ||||
| <100 | 300-400 | F8 | ||||
| 490*592*381 | 5 | 1700 | 2.65 | <50 | 250-300 | F5 |
| <65 | 250-300 | F6 | ||||
| <80 | 300-400 | F7 | ||||
| <100 | 300-400 | F8 | ||||
| 592*592*381 | 6 | 2050 | 3.18 | <50 | 250-300 | F5 |
| <65 | 250-300 | F6 | ||||
| <80 | 300-400 | F7 | ||||
| <100 | 300-400 | F8 |
Product Applications
a. Suitable for the filtration of paint, viscose, resin dyes, ink and oil products, chemicals and other industries.
b. Intermediate filtration of centralized ventilation and air conditioning system in cleanroom.
