Product Details:
|
| Keyword: | Plastic Frame V Bank Filter | Material: | Ultrafine Fiber Glass Paper With Plastic Frame |
|---|---|---|---|
| Function: | Air Filtration | Dust Holding: | 1000g |
| Filtration Efficiency Level: | F6-F9 | Remark: | Change Every 6 Months |
| Highlight: | 1000g Dust Holding Cleanroom Air Filter,1000g Dust Holding v bank air filter,2850m3/H V Cleanroom Air Filter |
||

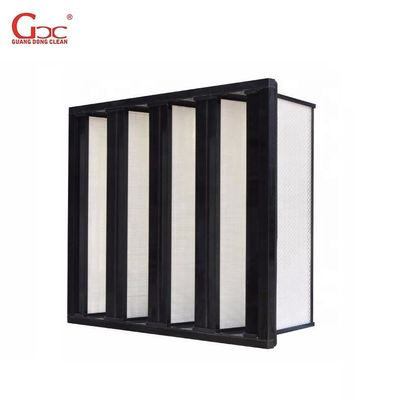

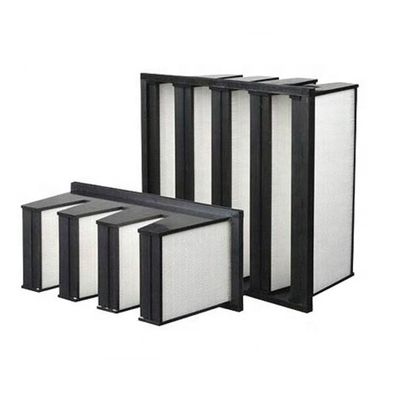

Plastic frame combined medium air filter, also be called as V bank filters or V cell filters, rigid pocket filters, are the most important part in clean room ventilation systems when filtration level 100 or 10. V bank filters are pre-filters before HEPA filters, the role and function are the same as pocket filters, but v bank filters offer more stable performance.

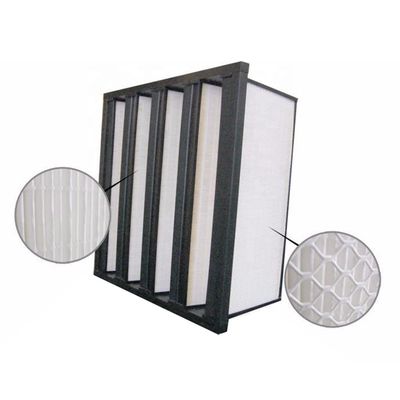

Normally, the v bank filters are made of ABS plastic frame, mini pleated glass fiber or pp pack, hot melt glue as the separator, they are manufactured in a doubleheader frame and are relatively lightweight when compared to the overall capacity of the products.
Product Characteristic
1. Large filtration area and long service life.
2. High air volume, low resistance.
3. Light in weight, easy to install
| Material | Ultrafine Fiber Glass Paper With Aluminum Frame |
| Dividers | PP Melt Spray Fiber Or Ultrafine Glass Fiber Filter Paper |
| Sealing Strip | EVA, Neoprene |
| Sealant | PU Two-Component Polyurethane AB Adhesive |
| Filtration Efficiency | F6, F7, F8, F9 |
| Permissible max relative temperature | 70℃ |
| Permissible max relative humidity | 80% |
Parameters
| Size (mm) |
Interval | Rated Air Rate (m³/h) |
Filter Area (㎡) |
Initial Resistance (Pa) |
Final Resistance (Pa) |
Efficiency |
| 287*287*292 | 2 | 900 | 4.63 | ≤60 | 250-300 | F6 |
| ≤80 | 300-400 | F7 | ||||
| ≤100 | 300-400 | F8 | ||||
| ≤120 | 400-450 | F9 | ||||
| 592*592*292 | 3 | 2850 | 15.03 | ≤60 | 250-300 | F6 |
| ≤80 | 300-400 | F7 | ||||
| ≤100 | 300-400 | F8 | ||||
| ≤120 | 400-450 | F9 |
