Product Details:
|
| Product Name: | V Bank Compact Filter With Plastic Frame | Keyword: | V Bank Filter |
|---|---|---|---|
| Material: | Ultrafine Fiber Glass Paper With Plastic Frame | Function: | Air Filtration |
| Dust Holding: | 1000g | Filtration Efficiency Level: | F6-F9 |
| Highlight: | 2 Interval V Bank Air Filter,900m3/H Cleanroom Air Filter,900m3/H V Bank Air Filter |
||

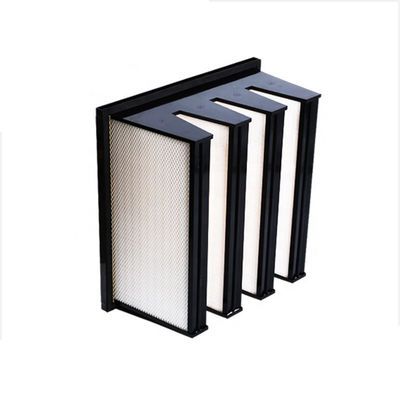

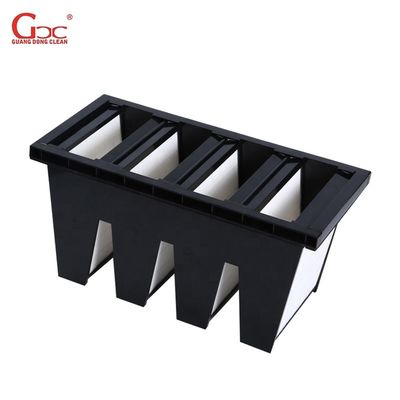

V Bank Filte With Plastic Frame is mainly used for filtration of more than 0.5μm dust particles, multi- V Mini-pleat design with large filtration area, low resistance, long service life, the use of waterproof ultra-fine glass fiber media, polypropylene plastic frame can be completely incinerated, and mounting flange frame is interchangeable with bag filter.
V Bank Compact Filter With Plastic Frame Features
1. High efficiency,
2. Large filter area,
3. Large air flow,
4. Wind speed uniformity is good,
5. Low pressure drop,
6. Long service life.
|
Material |
Ultrafine Fiber Glass Paper With Aluminum Frame |
|
Dividers |
PP Melt Spray Fiber Or Ultrafine Glass Fiber Filter Paper |
|
Sealing Strip |
EVA, Neoprene |
|
Sealant |
PU Two-Component Polyurethane AB Adhesive |
|
Filtration Efficiency |
F6, F7, F8, F9 |
|
Permissible max relative temperature |
70℃ |
|
Permissible max relative humidity |
80% |
V Bank Compact Filter With Plastic Frame Parameters
|
Size |
Interval |
Rated Air Rate |
Filter Area |
Initial Resistance |
Final Resistance |
Efficiency |
|
287*287*292 |
2 |
900 |
4.63 |
≤60 |
250-300 |
F6 |
|
≤80 |
300-400 |
F7 |
||||
|
≤100 |
300-400 |
F8 |
||||
|
≤120 |
400-450 |
F9 |
||||
|
592*592*292 |
3 |
2850 |
15.03 |
≤60 |
250-300 |
F6 |
|
≤80 |
300-400 |
F7 |
||||
|
≤100 |
300-400 |
F8 |
||||
|
≤120 |
400-450 |
F9 |
V Bank Compact Filter Applications
1. Optical electronic,
2. LCD,
3. Biological medicine,
4. Precision instruments film and optical fiber devices,
5. PCB Printing industry such as dust-free purification.
