Product Details:
|
| Keyword: | Fume Hood | Material: | Polypropylene |
|---|---|---|---|
| Voltage: | 110V/50Hz | Application: | Cleanroom, Laboratory Etc |
| Warranty Period: | One Year | After-Sales Service: | Online Support |
| Test Video: | Provide | OEM: | Can Be Acceptable |
| Highlight: | 99.99% Efficiency Clean Room Fume Hood,Anticorrosion Clean Room Fume Hood,99.99% Efficiency chemical exhaust hood |
||
Fume Hood is capable of preventing the buildup of and decreasing worker exposure to toxic, flammable and explosive vapors and particulate resulting from laboratory analytical preparation and testing procedures. The construction material of interior is made of a nonflammable, chemical and acid resistant material.
Fume Hood Parameters
|
Item |
GCC-FH-1200 |
GCC-FH-1500 |
GCC-FH-1800 |
|
Internal Size |
L000*W700*H2350mm |
L1300*W700*H2350mm |
L1600*W700*H2350mm |
|
External Size |
L1200*W800*H700mm |
L1500*W800*H700mm |
L1800*W800*H700mm |
|
Wind Speed |
0.3~0.8m/s |
||
|
Noise |
＜65dB |
||
|
Air Flow |
1200m³/h |
1800m³/h |
2300m³/h |
|
Efficiency |
99.99%@0.3μm |
||
|
Voltage |
220V/50Hz |
||
Advantages Of Our Fume Hood
1. Overall our fume hood made of durable polypropylene, resistant to acid,alkali and anti-corrosion.
2. Front window which is made of thick transparent toughened glass maximize light and visibility inside the fume hood, providing a bright and open working environment.

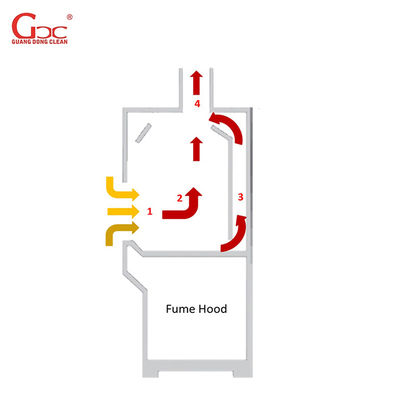

Air Flow Pattern

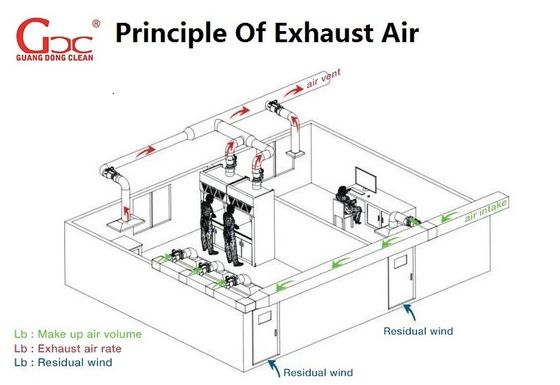

Exhaust Principle
1. Dirty room air is drawn into the front of the fume hood.
2. Room air mixes with potentially contaminated air from chamber and is pulled upward by the bulding exhaust.
3. Air split at back of hood increases exhaust and reduces turbulence.
4. Contaminated air drawn from fume hood by building exhaust fan and leaves through air stacks on room
Safety Note: Only provide personal protection. No HEPA filters to remove biological agents. Contaminates reduced to acceptable levels by dilution with environmental air.
