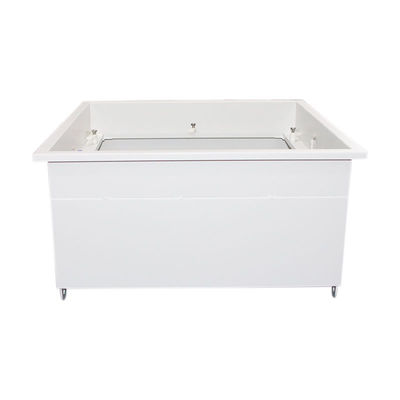

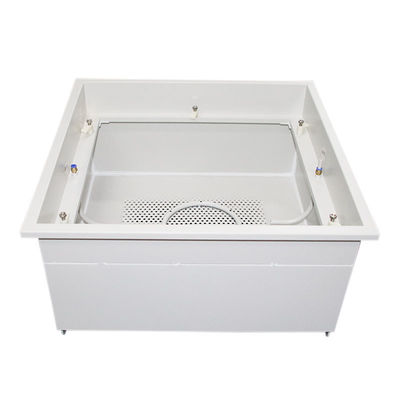

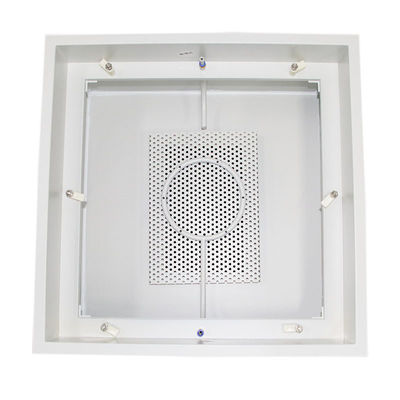

99.97% Efficency SS304 Cleanroom Air Filter Outlet Box

99.97% Efficency SS304 Cleanroom Air Filter Outlet Box
99.97% Efficency SS304 Cleanroom Air Filter Outlet Box 99.97% Efficency SS304 Cleanroom Air Filter Outlet Box 99.97% Efficency SS304 Cleanroom Air Filter Outlet Box 99.97% Efficency SS304 Cleanroom Air Filter Outlet Box 99.97% Efficency SS304 Cleanroom Air Filter Outlet Box

Large Image :  99.97% Efficency SS304 Cleanroom Air Filter Outlet Box

Product Details:
Place of Origin: China
Brand Name: GCC
Certification: CE
Model Number: AO
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Plywood Box
Delivery Time: 7-14 Workdays
Payment Terms: L/C, T/T
Supply Ability: 10000 Sets/Month
Contact Now

99.97% Efficency SS304 Cleanroom Air Filter Outlet Box

Description
Product Name: Cleanroom Air Filter Outlet Box Keyword: Air Outlet
Application: Air Condition System Style: Standard Design
Material: Color Plate After-sales Service Provided: Online Support
Highlight:

99.97% Efficency Air Filter Outlet Box

,

SS304 Air Filter Outlet

,

SS304 clean room equipments

Cleanroom Air Filter Outlet Box

Features of Cleanroom Air Filter Outlet Box



frame: cold roll steel with coated/ SS304

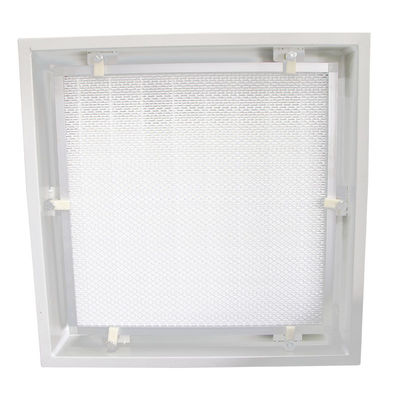

Filter: Gel seal HEPA filter or mini pleat hepa filter,
supported and fixed by four sides press lock to facilitate the replacement
air control: manual valve or actuator

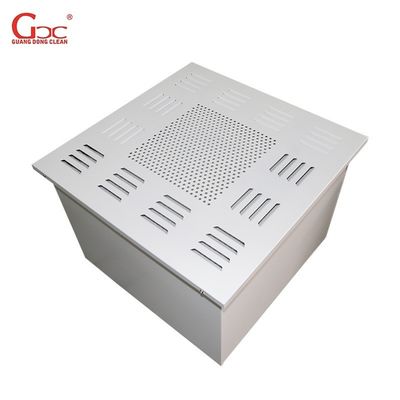

diffusing plate: coated cold steel/coated aluminum/SS304
EN 1822 efficiency: H14.U15
MPPS efficiency: H14: ≥99.995%
DOP efficiency: H14: ≥ 99.999%.
Recommended final pressure drop: 600 Pa.
Temperature: 70°C maximum in continuous service.
Test: 100% individually scanned to EN 1822.
Mounting system: Mechanical clamping structure,
Optional: Butterfly regulating device for controlling the valve to adjust the amount of inlet air flow in clean room.

This device can be rotated directly from the bottom to control the valve which is connected by a metal screw between the butterfly valve, so that adjusting the interior air flow conveniently.


PAO Dust dispersing port, PAO upstream sampling test port. Ports are for testing air leakage for each HEPA box connected with testing device hose.

HEPA box for side gel seal HEPA filter



FILTER SIZE HOUSING SIZE FACE VELOCITY AIR FLOW Round duct size square duct size INITIAL D.P EXTERNAL CASING SIZE
TOP INLET SIDE INLET
L×W×H(mm) L×W×H(mm) L×W×H(mm) m/s m3/h (mm) L×W(mm) PAOH13(Pa) (99.97%@0.3um) L1*L1*H1(mm)
434×434×90 484×484×280 484×484×410 0.75 500 200 200×200 185 524*524*H+40
584×584×90 634×634×280 634×634×410 0.75 900 250 320×200 185 674*674*H+40
644×644×90 694×694×280 694×694×410 0.75 1100 300 320×250 185 734*734*H+40
949×644×90 999×694×280 999×694×410 0.75 1600 350 500×250 185 1039*734*H+40
1254×644×80 1304×694×280 1304×694×410 0.75 2200 400 600×200 185 1344*734*H+40


HEPA box for top seal HEPA filter


FILTER SIZE HOUSING SIZE FACE VELOCITY AIR FLOW Round duct size square duct size INITIAL D.P EXTERNAL CASING SIZE
TOP INLET SIDE INLET
L×W×H(mm) L×W×H(mm) L×W×H(mm) m/s m3/h (mm) L×W(mm) PAOH13(Pa) (99.97%@0.3um) L1*L1*H1(mm)
400×400×95 450×450×280 450×450×410 0.75 500 200 200×200 185 490*490*H+40
550×550×95 600×600×280 600×600×410 0.75 900 250 320×200 185 640*640*H+40
610×610×95 660×660×280 660×660×410 0.75 1100 300 320×250 185 700*700*H+40
915×610×95 965×660×280 965×660×410 0.75 1600 350 500×250 185 1005*700*H+40
1220×610×95 1270×660×280 1270×660×410 0.75 2200 400 600×200 185 1310*700*H+40



Quality Assurance

  • Every production process has a special person to test to ensure quality
  • Have professional engineers to check the quality
  • All products have passed CE, FCC, ROHS and other certifications
Application

It is a replaceable HEPA unit , widely used in the technical field hospitals, pharmaceutical, semiconductor , LCD manufacturing,precision machinery, optical , etc. Body surface using electrostatic spray treatment, corrosion resistance, tank seal design further enhancesits uniqueness.

Tag:

500m3/h Air Filter Outlet,

1500m3/H Clean Room Accessories,

H380mm Air Filter Outlet
