Product Details:
|
| Keyword: | Laminar Flow Ceiling | Material: | Stainless Stell/Steel/Aluminum |
|---|---|---|---|
| Filtration Efficiency: | H13@99.95% | Outlet Wind Speed: | 0.3-0.45m/s |
| Remark: | Size Can Be Customized | ||
| Highlight: | SS304 Laminar Flow Module,SS304 operating room laminar flow system,6Pcs Hepa Filter Laminar Flow Module |
||
Ceiling systems MLS for operating rooms are an element of clean rooms and are designed to prevent infection in the wound (during surgical operations) by feeding a laminar (low-turbulent) sterile air flow at a certain rate (0.24-0.3 m / s) in the operating field. High-efficiency air HEPA filters of class H14 are used for air purification. This complex of measures makes it possible to reduce the likelihood of postoperative complications, to shorten the period of recovery of the patient after the operation and, as a consequence, to reduce the costs for the patient's stay in the medical institution.
Materials
SS: polished stainless steel grade AISI 304 "2B"
PS: powder-coated steel The housing of the ceiling system has flat, smooth surfaces that are easily cleaned. Outside,
the housing is covered with a material that absorbs noise from the ventilation system. The ceiling system has perforated laminating machines, which are quickly removed, as well as a simple and reliable design of the filter fasteners, which simplifies maintenance.
Parameters
| Item | GCC-LFC-II | GCC-LFC-I |
| Size | 2600*1800*500mm | 2600*2400*500mm |
| Hepa Filter Quantity | 6Pcs | 8Pcs |
| Filtration Efficiency | H13@99.95% | H13@99.95% |
| Outlet Wind Speed | 0.3-0.45m/s | 0.3-0.45m/s |
| Use Occasions | Class II Special Clean Room | Class I Special Clean Room |
Applications

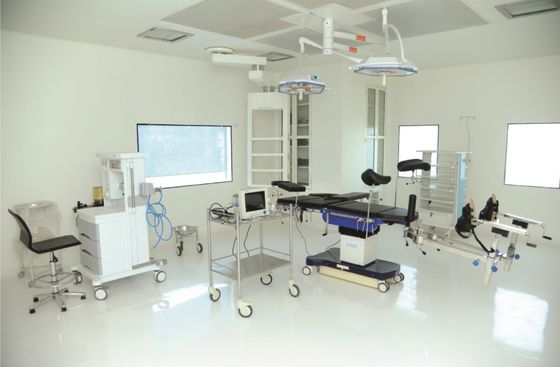

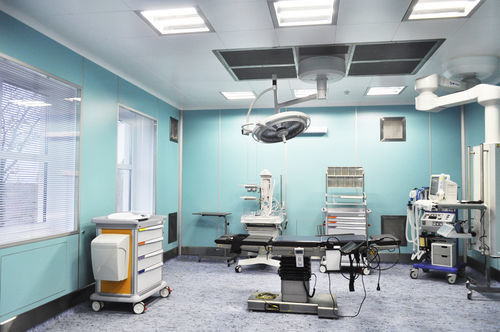

It is mainly used in the hospital operating room to meet the requirements of different operating levels.
