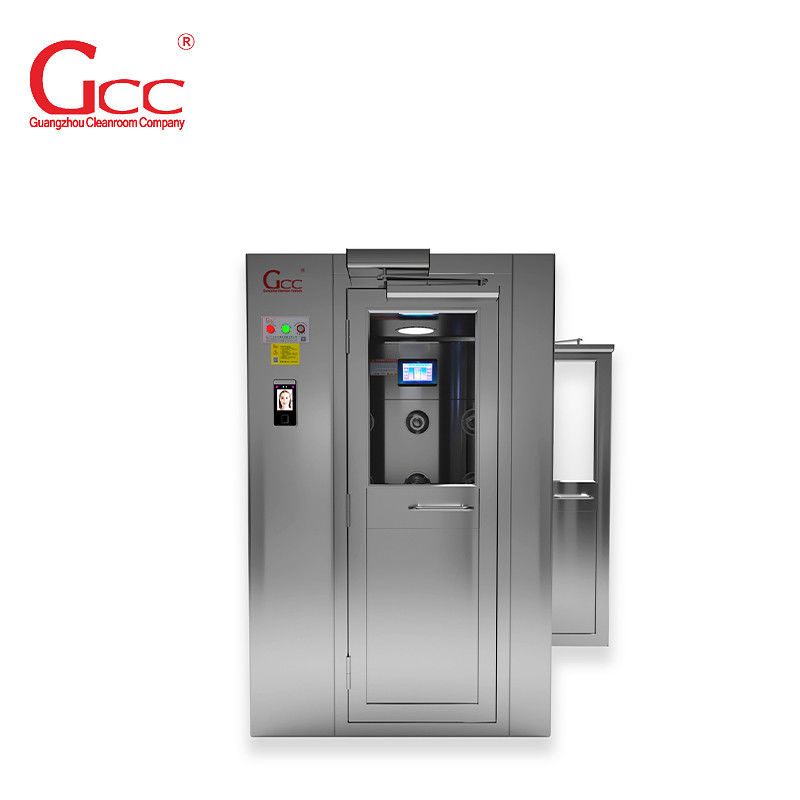

Adjustable Time 2800R/Min 110V Cleanroom Air Shower

Durable Stainless Steel Cleanroom Air Shower

Cleanrooms are required to adhere to strict regulatory guidelines to prevent contamination. Generally, people wear Coveralls or other protective gear before entering a cleanroom to prevent outside contaminants from , but that isn’t always enough.

As contaminants are easily transported by people and objects, which could cause issues in some cleanroom environments. Therefore, cleanroom air showers have become a vital component in maintaining the cleanliness of cleanrooms and other clean-critical environments.

Cleanroom air showers are enclosed chambers placed at the entry and exit points of a cleanroom or other controlled environment. Cleanroom air showers use high-velocity jets of air and HEPA or ULPA air filter systems to make air at velocities of 3,000 to 7,000 feet-per-minute (FPM), continuously streams from the jet nozzles for 30–45 seconds that remove loose contaminants from people and products when they pass it. Particle-laden, contaminated air is routed out of the shower compartment through floor vents and returned to the filtration unit. This process can filter the particles in the air and keep the cleanliness.

Features

1. Fully auto controlled by computer, 2 mechanical interlocking door, automatically blow and shower.
2. Duration for showering can be adjusted from 0 second to 99 seconds with time showed on LPC board.
3. Made of stainless steel.
4. Efficiency can reach 99.99%@0.3μm with Pre filter and Hepa filter.
5. Air velocity can up to 25·30m/s.
6. Non -standard size. OEM is acceptable.

Parameters

Alternative Configurations

a. Material
b. Intercom
c. Ultraviolet sterilizing lamp/yellow light
d. Buzzer
e. Door
 f. Size
