Product Details:
|
| Keywords: | Cleanroom Air Shower | Material: | Metal |
|---|---|---|---|
| Type: | Automatic Cleanroom Air Shower | Interlock: | Electronics Or Mechanical |
| Video Outgoing-inspection: | Clean Room Entrance | After-sales Service Provided: | Manufacturing Plant, Food & Beverage Factory |
| Highlight: | 120V Stainless Steel Air Shower,G3 Efficiency Stainless Steel Air Shower,G3 Efficiency stainless steel cleanroom |
||

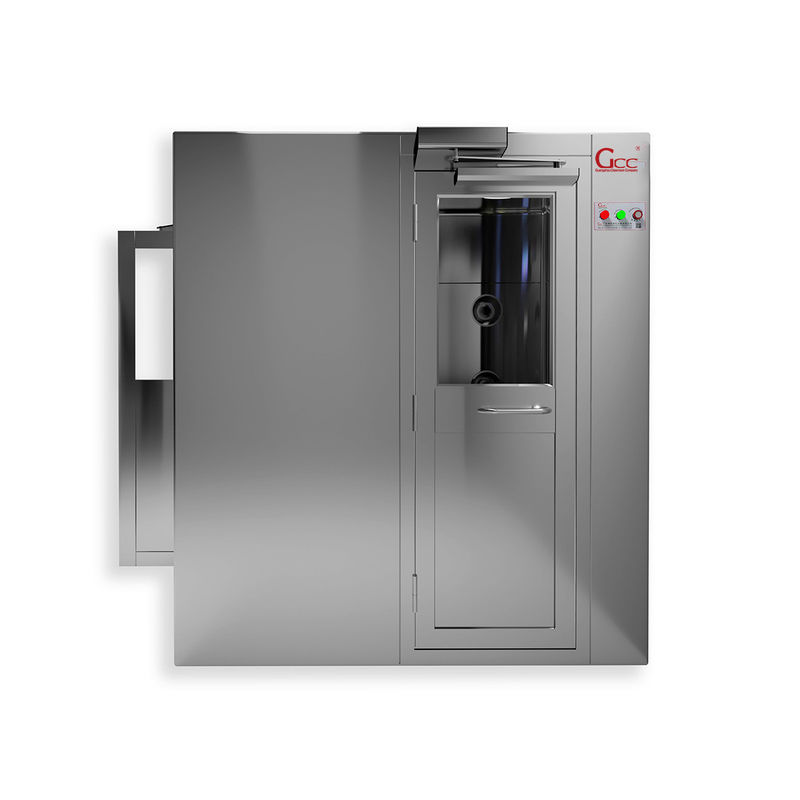

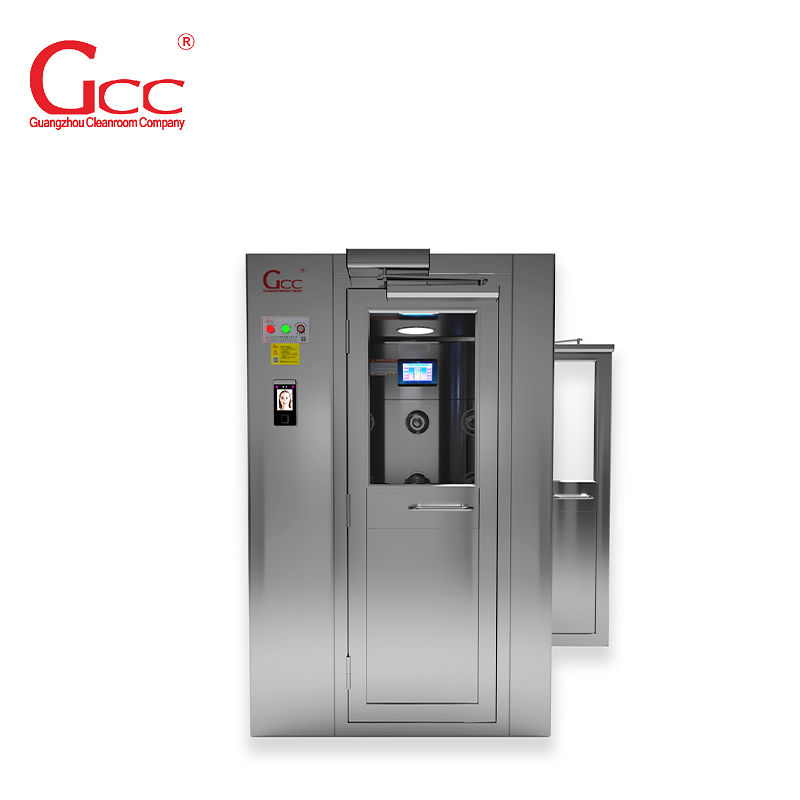

Cleanroom air shower rooms are local purification equipment, used for the removal of dust particles larger than 99.99%@ 0.3μm brought in by people or goods when entering a high cleanliness clean room from a low cleanliness clean room.
Features
1. Fully auto controlled by computer, 2 mechanical interlocking door, automatically blow and shower.
2. Duration for showering can be adjusted from 0 second to 99 seconds with time showed on LPC board.
3. Made of color plate.
4. Efficiency can reach 99.99%@0.3μm with Pre filter and Hepa filter.
5. Air velocity can up to 25·30m/s.
6. Non -standard size. OEM is acceptable.
|
Item |
GCC-ASA-1000 |
GCC-ASA-2000 |
GCC-ASA-3000 |
|
Material |
Stainless Steel or Color Plate |
||
|
Internal Size |
860*790*1910mm |
1860*790*1910mm |
2860*790*1910mm |
|
External Size |
1000*1400*2050mm |
2000*1400*2050mm |
3000*1400*2050mm |
|
Efficiency |
99.99%@0.3μm,G3 |
||
|
Voltage |
110V/120V/220V/230V/240V/380V |
||
|
Fan Air Volume |
1300m³/h |
||
|
Fan Rotate Speed |
2800R/min |
||
|
Wind Speed |
≥25-30m/s |
||
|
Showering Time |
0-99s( adjustable) |
||
|
Noise |
＜62dB |
||
|
Remark |
Can Be Customized |
||
Alternative Configurations
a. Material
b. Intercom
c. Ultraviolet sterilizing lamp/yellow light
d. Buzzer
e. Door
f. Size
