Product Details:
|
| Keyword: | Prefab Cleanroom | Frame Material: | Aluminum Profile, Stainless Steel Profile, Steel Profile |
|---|---|---|---|
| Wall Material: | Magnesium Sandwich Panel | Video Outgoing-inspectionv: | Provided |
| Machinery Test Report: | Provided | After-sales Service Provided: | Online Support |
| Highlight: | Class 100000 Prefab Cleanroom,Class 100000 laboratory clean room,Dust Free Laboratories Prefab Cleanroom |
||

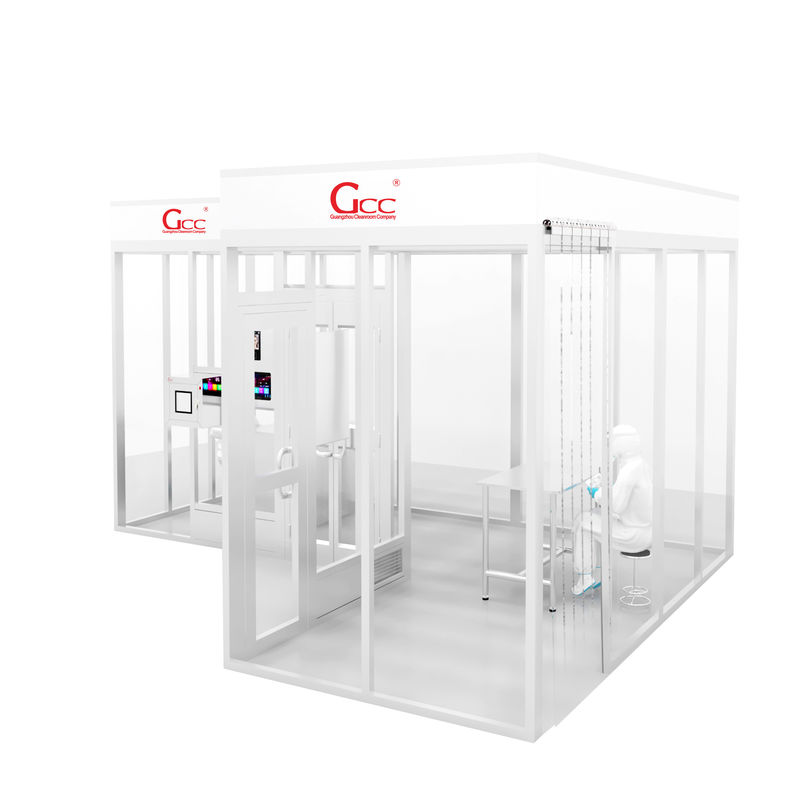

Prefab cleanroom is to control the cleanliness and temperature & humidity of the atmosphere that products (such as silicon) contact, can make the products in a good environment of production and manufacturing, this space we call it clean room.
According to international practice, dust-free purification level mainly be decided according to the number of air particle diameter per cubic meter is greater than the standard number of particles.
That is the so-called no dust, is not 100% no dust, but control on a very tiny amounts of units. Of course accord with standard of dust particles in the standard relative to our common dust is very small..
Level Of Airborne Particulate Cleanliness In Prefab Cleanroom
| FED STD 209E | ||||||
| Level | >=0.1um | >=0.2um | >=0.3um | >=0.5um | >=5um | Equivalent |
| 1 | 35 | 7 | 3 | 1 | ISO3 | |
| 10 | 350 | 75 | 30 | 10 | ISO4 | |
| 100 | 100 | ISO5 | ||||
| 1000 | 1000 | 7 | ISO6 | |||
| 10000 | 10000 | 70 | ISO7 | |||
| 100000 | 100000 | 700 | ISO8 | |||
| ISO 14644-1 Cleanroom Standards | |||||||
| Level | >=0.1um | >=0.2um | >=0.3um | >=0.5um | >=1um | >=5um | Equivalent |
| ISO1 | 10 | 2 | |||||
| ISO2 | 100 | 24 | 10 | 4 | |||
| ISO3 | 1000 | 237 | 102 | 35 | 8 | 1 | |
| ISO4 | 10000 | 2370 | 1020 | 352 | 83 | 10 | |
| ISO5 | 100000 | 23700 | 10200 | 3520 | 832 | 29 | 100 |
| ISO6 | 1000000 | 237000 | 102000 | 35200 | 8320 | 293 | 1000 |
| ISO7 | 352000 | 83200 | 2930 | 10000 | |||
| ISO8 | 3520000 | 832000 | 29300 | 100000 | |||
| ISO9 | 35200000 | 8320000 | 293000 | Room Air | |||
Application Industry
GCC prefab cleanroom projects cover in pharmaceutical plants, laboratories, testing centers, dust free production workshops, precision machinery industry, hospitals, electronics factories, semiconductor factories, microelectronics workshops, electrical appliances workshops, etc.
Our Advantage
GCC offers Full-Service Turnkey Cleanrooms including:
• Cleanroom Planning and Budgeting, • Cleanroom Design and Engineering,
• Cleanroom Construction and Assembly, • Cleanroom Preventative Maintenance.
