Product Details:
|
| Keyword: | Horizontal Laminae Flow Hood | Style: | Freestanding Design |
|---|---|---|---|
| Material: | Steel | Function: | Air Filtration |
| After-Sales Service Provided: | Online Support | Remark: | Size Can Be Customized |
| Highlight: | 490W Class 100 Laminar Flow Hood,490W Laminar Flow Biosafety Cabinet,220V Laminar Flow Biosafety Cabinet |
||

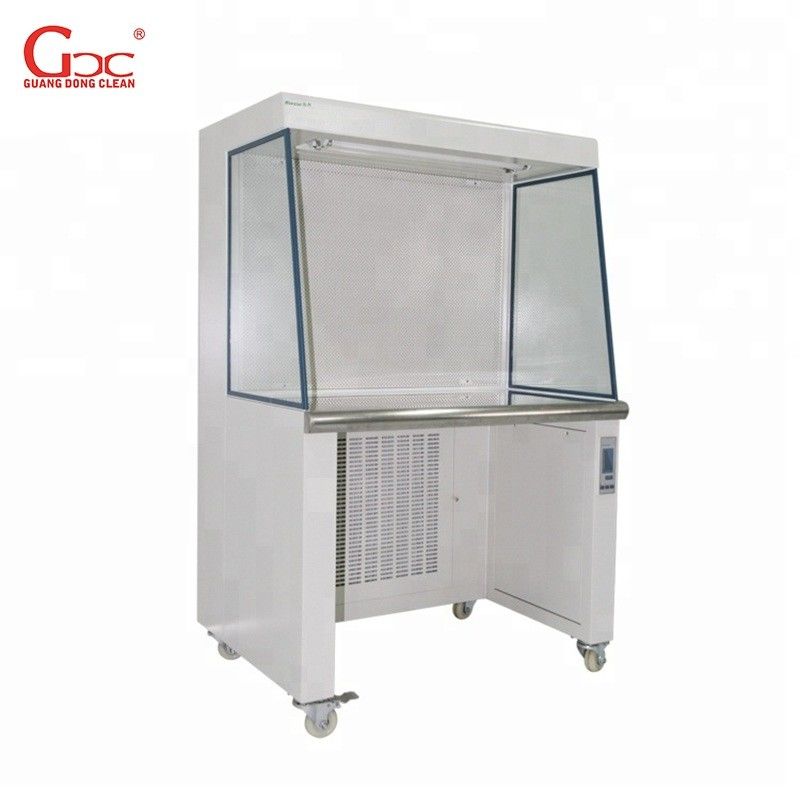

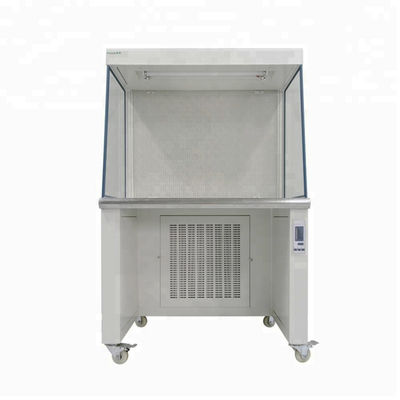

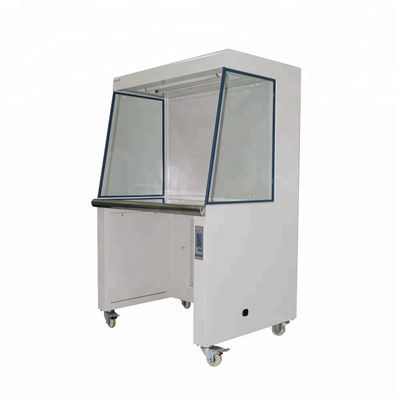

Newly designed horizontal laminar flow hood with optional worksurface or table provide ISO 4 or ISO 5 condition for many application required sterile and clean environment. Construction available in powder coated steel and 304 Stainless Steel.
Features
Parameters
|
Item |
GCC-HLBC-960 |
GCC-HLBC-1200 |
GCC-HLBC-1500 |
|
Internal Size |
L930*W600*H600mm |
L1170*W600*H600mm |
L1470*W600*H600mm |
|
External Size |
L960*W780*H1580mm |
L1200*W820*H1580mm |
L1500*W900*H1580mm |
|
Cleanliness Level |
Level 100 |
||
|
Wind Speed |
0.3~0.6m/s |
||
|
Noise |
＜65dB1 |
||
|
Air Flow |
1200m³/h |
1800m³/h |
2300m³/h |
|
Efficiency |
99.99%@0.3μm |
||
|
Voltage |
220V/50Hz |
||
|
Power |
280W |
405W |
490W |
Options
1. Stainless steel attached worksurface,
2. Stainless steel cleanroom table,
3. Stainless steel interior side panels,
4 .UV sterilization light and ionizing bar
