Product Details:
|
| Key Wrod: | Cleanroom Fan Filter Unit | Acronym: | FFU |
|---|---|---|---|
| Material: | Aluminum, Stainless Steel, Steel | Control Method: | Manually Or Group Control Dy Computer |
| Delivery Inspect Video: | Provide | After Sale Serve: | Online Video Support |
| Highlight: | 1200m3/h Cleanroom Fan Filter Unit,CE certified Cleanroom Fan Filter Unit,1200m3/h ffu fan filter unit |
||

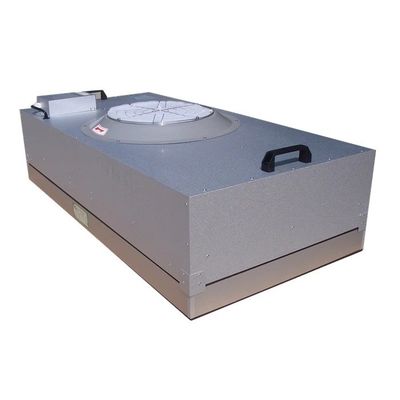

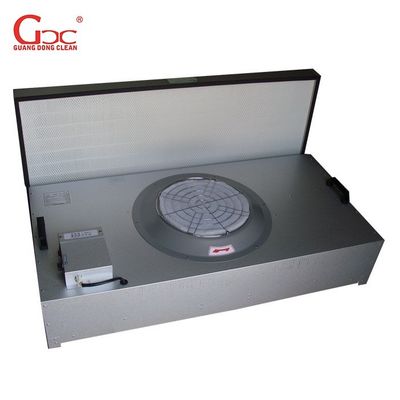

Cleanroom fan filter unit (FFU) is an air self-cleaning device that is equipped with both a primary and high-efficiency two-stage filter device. The air intake comes through the fan top, and is filtered through the two stage filter device. Clean air is then sent out through the outlet.
The device can be installed indoors on the ceiling or mounted on a shelf. It can also be arranged in a single or multiple assembly lines, so that the purification level reaches class 100 according to different requirements. In addition, the FFU can also be used to supply air for the terminal in a clean room.
Features
1. The height is low, the space can be saved when the system is designed. It adopts the good quality aluminium alloy and makes by cold rolled steel with power coated. It applies to all manufacturer’s installation of Grid system and to change the size of FFU according to it.
2. HEPA centrifuge with long-life span, energy-saving, low noise, no maintaince, small vibration, adjustable speed, stabilizing performance which can remain the same air flow at the final resistance of HEPA filter. The inner tube is made by metal and the special air entrance with low air resistance and good sound insulation.
3. The spread board is equipped inside, wind pressure is even. The efficiency of motor is high. The power-consuming is low, which can saveEnergy. The single motor provides three kinds of speed. The air speed and air flow can be adjusted according to practical condition.
4. Rely on computers, interfaces and repeater equipment, you can set up the LISA remote control system with 7905 set Fans. It has a series of automatic operation, control the Fan speed, setting the running time and when running error, it will send email automatic via remote software.
5. Modularizing, assembling design, easy construction which can save the working time. It is much cheaper compared to civil design clean room and suitable for the revolving, the speed, the working time of hundreds or even thousands fans Convenient and fast.
Parameters
| Item | GCC-FFUA-1 | GCC-FFUA-2 | GCC-FFUA-3 | GCC-FFUA-4 | |
| Size (WxLxH) | 575x875x275mm | 920x615x275mm | 575x1175x275mm | 615x1225x275mm | |
| Air Flow | 800~900m³/h | 800~900m³/h | 1100~1200m³/h | 1100~1200m³/h | |
| Air Velocity | 0.35~0.55m/s | ||||
| Total Pressure | 230Pa | 230Pa | 230Pa | 230Pa | |
| Power | 100W | 100W | 100W | 100W | |
| Weight | 25kgs | 27.5kgs | 34kgs | 37.5kgs | |
| Noise (1m below the HEPA filter) |
55~63dB | ||||
| Vibration | 0.2~0.7mm/s | ||||
| Control Mode | Manually Or Group Control Dy Computer | ||||
| Options |
DOP Inject Port / DOP Sample Port / Differential Pressure Drop Test Port / Differential Pressure Drop Alarm Device |
||||
| HEPA Filter | Size (WxHxD) | 570x870x69mm | 915x610x69mm | 570x1170x69mm | 610x1220x69mm |
| Efficiency | 99.99% 0.3μm | ||||
| Frame | High Quality Anodized Aluminum | ||||
| Initial Pressure Drop | 110Pa@0.45m/s±15% | ||||
| Trait | PU Foam Endless Gasket | ||||
Application
Hospital, pharmaceutical, laboratory, semiconductor, electronic, bio-engineering, clean bench, clean room, or any other place requires high cleanliness environment.
