Product Details:
|
| Key Word: | Cleanroom HEPA Ceiling Modules Filters Unit | Acronym: | FFU |
|---|---|---|---|
| Material: | Stainless Steel | Packaging: | OPP Bag With Carton |
| Delivery Inspect Video: | Provide Before Delivery | After Sale Serve: | Online Video |
| Highlight: | Class 1000 HEPA Filter Ceiling Module,Class 1000 Ffu Fan Filter,100W Ffu Fan Filter |
||

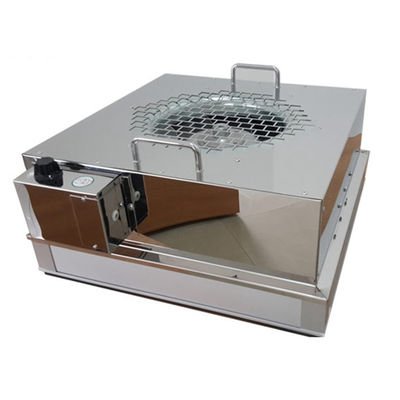

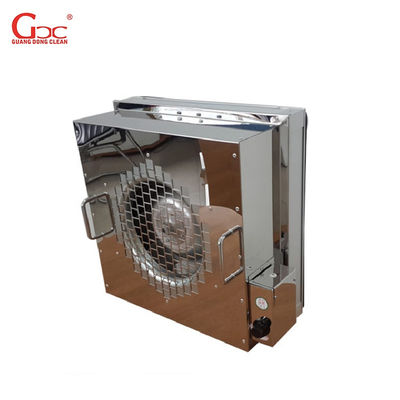

Cleanroom HEPA Ceiling Modules Filters Unit is type of unit used for filtering laminar air and supplying clean air. Cleanroom HEPA Ceiling Modules Filters Unit can be used stand alone or installed modularly. Cleanroom HEPA Ceiling Modules Filters Unit is the core when making clean room equipment for a given space including clean booth, clean bench and clean room assembly.
Features
1. The master switch inner set with insurance and indicator light,
2. The control mode is flexible, can be three or five air velocity speed adjustment,
3. Abnormal indicator light to understand the operation state of the equipment.
Parameters
|
Item |
GCC-FFUS-1 |
GCC-FFUS-2 |
GCC-FFUS-3 |
GCC-FFUS-4 |
|
|
Size (WxLxH) |
575x875x275mm |
920x615x275mm |
575x1175x275mm |
615x1225x275mm |
|
|
Air Flow |
800~900m³/h |
800~900m³/h |
1100~1200m³/h |
1100~1200m³/h |
|
|
Air Velocity |
0.35~0.55m/s |
||||
|
Total Pressure |
230Pa |
230Pa |
230Pa |
230Pa |
|
|
Power |
100W |
100W |
100W |
100W |
|
|
Weight |
25kgs |
27.5kgs |
34kgs |
37.5kgs |
|
|
Noise |
55~63dB |
||||
|
Vibration |
0.2~0.7mm/s |
||||
|
Control Mode |
Manually Or Group Control Dy Computer |
||||
|
Options |
DOP Inject Port / DOP Sample Port / Differential Pressure Drop Test Port / Differential Pressure Drop Alarm Device |
||||
|
HEPA Filter |
Size (WxHxD) |
570x870x69mm |
915x610x69mm |
570x1170x69mm |
610x1220x69mm |
|
Efficiency |
99.99% 0.3μm |
||||
|
Frame |
High Quality Anodized Aluminum |
||||
|
Initial Pressure Drop |
110Pa@0.45m/s±15% |
||||
|
Trait |
PU Foam Endless Gasket |
||||
Application
Cleanroom HEPA Ceiling Modules Filters Unit is suitable for semiconductor, electronic, flat panel display and disk drive manufacturers and optical, bio-industry industries such as clean room, clean bench, clean production line, assembled clean room and local hundred and other occasions and Other places with strict control over air pollution require low energy consumption and lower operating costs.
