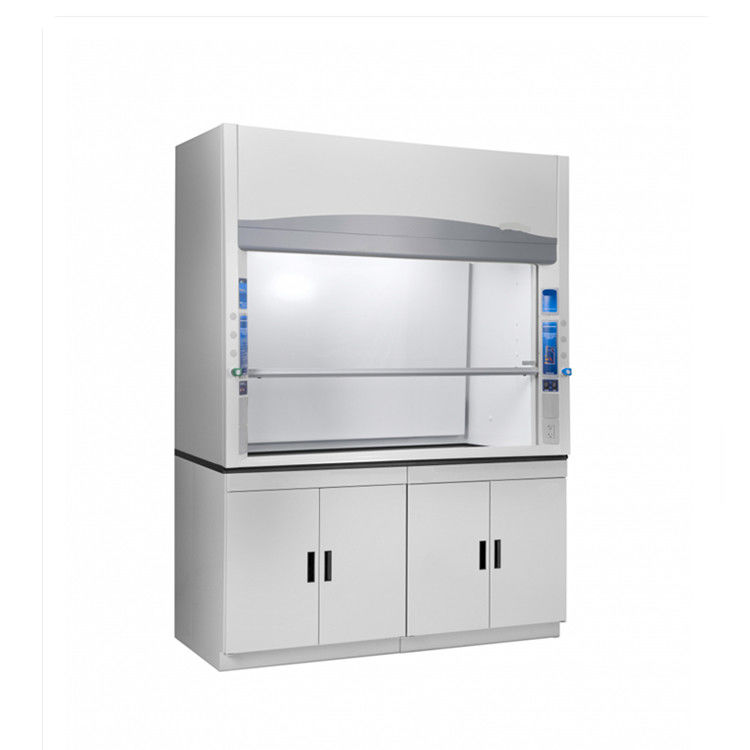

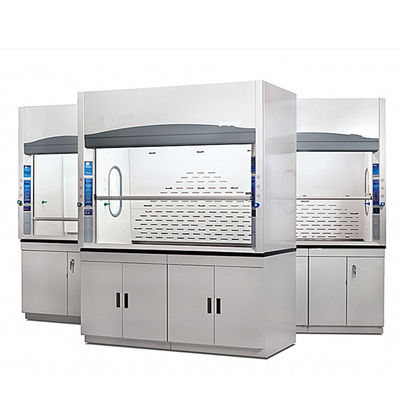

Stainless Steel Laboratory Clean Room Fume Hood

A Exhaust Fume Cupboard is typically a large piece of equipment enclosing five sides of a work area, the bottom of which is most commonly located at a standing work height.

Two main types exist, ducted and recirculating (ductless). The principle is the same for both types: air is drawn in from the front (open) side of the cabinet, and either expelled outside the building or made safe through filtration and fed back into the room.

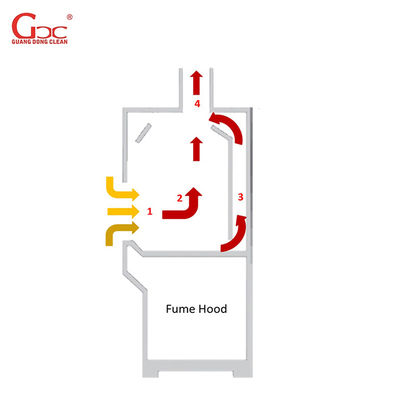

Exhaust Fume Cupboard Exhaust Principle

1. Dirty room air is drawn into the front of the fume hood.

2. Room air mixes with potentially contaminated air from chamber and is pulled upward by the bulding exhaust.

3. Air split at back of hood increases exhaust and reduces turbulence.

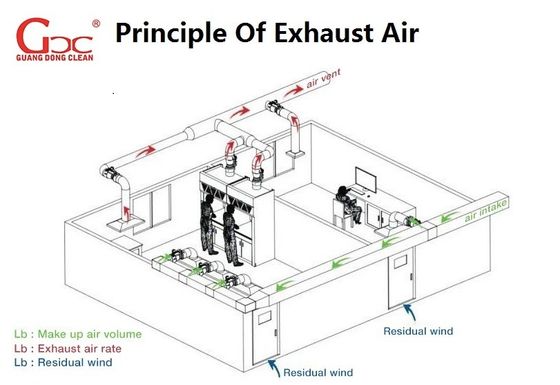

4. Contaminated air drawn from fume hood by building exhaust fan and leaves through air stacks on room

Safety Note: Only provide personal protection. No HEPA filters to remove biological agents. Contaminates reduced to acceptable levels by dilution with environmental air.

Exhaust Fume Cupboard  Parameters

Features Of Our Exhaust Fume Cupboard

1. Overall our fume hood made of Stainless Steel, resistant to acid,alkali and anti-corrosion.

2. Front window which is made of thick transparent toughened glass maximize light and visibility inside the fume hood, providing a bright and open working environment.

Quality Control

Factory testing:
All of equipment is individually factory tested for safety and performance in accordance with international Standards.
Each unit is shipped with a documentation outlining the tests undertaken and the unit’s individual results for each unit.
Factory test include:
--appearance testing
--functional test and visual inspection
--air velocity testing
--noise testing
