Product Details:
|
| Keyword: | Cleanroom Fan Filter Unit | Application: | Cleanrooms, Laboratories, Medical Facilities Or Microenvironments Etc |
|---|---|---|---|
| Material: | Galvalume | Control Method: | Group Control |
| Power Supply: | 3 Levels Adjustable | Remark: | Material Can Be Customized |
| Highlight: | Galvalume Cleanroom Fan Filter Unit,1100m3/H Cleanroom Fan Filter Unit,Galvalume hepa fan filter unit |
||

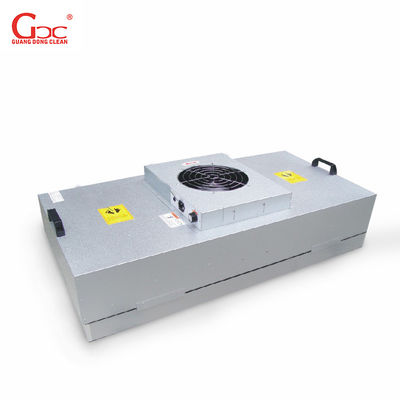

Super thin FFU is generator set with super thin motor inside which is used in the turbulent layer and laminar flow clean room, where have limited installation space. Its speed can also reach to 0.45m/s ±20% same as other FFU.
It is 100mm thinner than the ordinary FFU. The material of cabinet is stainless steel, Galvanized steel with aluminum painting, Cold rolled steel with epoxy powder and so on. It is lighter, corrosion-resistance, rust-resistance and beautiful.
Features

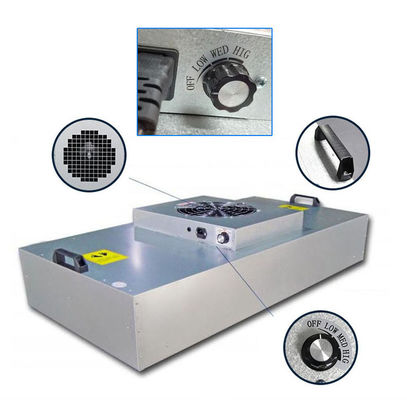

1. Overheating protection: Inside equipped with overheating protection, the surface is smooth and bright, lower air resistance and good sound insulation. Special air entrance design can low down the noise effectively .
2. The average air speed increase to 25%: Long-life span, energy-saving, low noise, less maintenance, small vibration and adjustable speed. The average air speed increase to 25%.
3. Life-long span: It works as an average air speed of 0.45m/s. The outlet speed is stable and can shorten the period the replace filters. In the meantime, it can extend the service life of fans.
4. Space-saving:Light and convenient, easy and beautiful design. Let the using space reduced largely and the efficiency is higher. Not only improve the scope and space, but also energy saving.
Parameters
| Item | GCC-FFUT-1 | GCC-FFUT-2 | GCC-FFUT-3 | GCC-FFUT-4 | |
| Size (WxLxHmm) | 575x875x275 | 920x615x275 | 575x1175x275 | 615x1225x275 | |
| Air Flow (m³/h) | 800~900 | 800~900 | 1100~1200 | 1100~1200 | |
| Air Velocity (m/s) | 0.35~0.55 | ||||
| Total Pressure (Pa) | 230 | 230 | 230 | 230 | |
| Power (W) | 100 | 100 | 100 | 100 | |
| Weight (kg) | 25 | 27.5 | 34 | 37.5 | |
| Noise dB (1m below the HEPA filter) |
55~63 | ||||
| Vibration (mm/s) | 0.2~0.7 | ||||
| Control Mode | Manually Or Group Control Dy Computer | ||||
| Options |
DOP Inject Port / DOP Sample Port / Differential Pressure Drop Test Port / Differential Pressure Drop Alarm Device |
||||
| HEPA Filter | Size (WxHxDmm) | 570x870x69 | 915x610x69 | 570x1170x69 | 610x1220x69 |
| Efficiency | 99.99% 0.3μm | ||||
| Frame | High Quality Anodized Aluminum | ||||
| Initial Pressure Drop | 110Pa@0.45m/s±15% | ||||
| Trait | PU Foam Endless Gasket | ||||
Application
Semiconductor, electron, flat-panel display, disc-drive, manufacture and optics, bio-engineering, clean bench, clean room, or any other places.
Hospital, pharmaceutical, laboratory, semiconductor, electronic, bio-engineering, clean bench, clean room, or any other place requires high cleanliness environment.
