Product Details:
|
| Keyword: | Cleanroom Fan Filter Unit | Material: | Steel Or Aluminum Or Stainless Steel |
|---|---|---|---|
| Control Mode: | Manually Or Group Control | Delivery Inspection Video: | Provide |
| After-Sales Service Provided: | Online Support | Application: | Any Other Place Requires High Cleanliness Environment. |
| Highlight: | 800m3/h Cleanroom Fan Filter Unit,110V 50Hz Cleanroom Fan Filter Unit,110V 50Hz hepa fan filter unit |
||

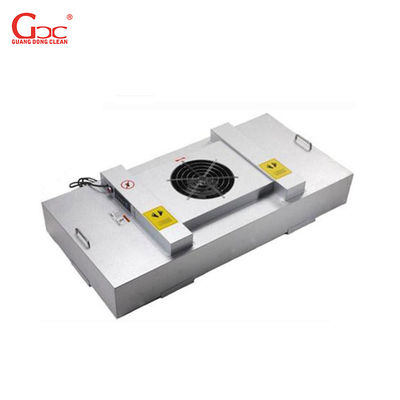

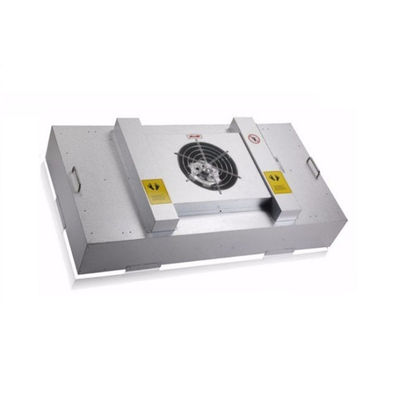

FFU is used in the trubulent layer and laminar flow clean room,with the characterisitic of continuous use.The air flow can reach 0.45m/s±20%. It has long-life span,low noise,smallvibration,adjudtable speed.It can control thousand unit together.
Features
1. Low Noise,
2. High Airflow Capacity,
3. High Energy Efficiency,
4. Light weight and rust-resistant,
5. Instant Filter and Motor Status Indication.
Parameters
| Item | GCC-FFUT-1 | GCC-FFUT-2 | GCC-FFUT-3 | GCC-FFUT-4 | |
| Size (WxLxH) | 575x875x275mm | 920x615x275mm | 575x1175x275mm | 615x1225x275mm | |
| Air Chamber Material | Steel / Aluminum / Stainless Steel | ||||
| Air Flow | 800~900m³/h | 800~900m³/h | 1100~1200m³/h | 1100~1200m³/h | |
| Air Velocity | 0.35~0.55m/s | ||||
| Total Pressure | 230Pa | 230Pa | 230Pa | 230Pa | |
| Power | 100W | 100W | 100W | 100W | |
| Weight | 25kgs | 27.5kgs | 34kgs | 37.5kgs | |
| Noise (1m below the HEPA filter) |
55~63dB | ||||
| Vibration | 0.2~0.7mm/s | ||||
| Power Supply | 110V/50Hz, 220V/ 50Hz, 330V/50Hz | ||||
| Control Mode | 3 Levels Adjustable Manually Or Group Control Dy Computer | ||||
| Options |
DOP Inject Port / DOP Sample Port / Differential Pressure Drop Test Port / Differential Pressure Drop Alarm Device |
||||
| HEPA Filter | Size (WxHxD) | 570x870x69mm | 915x610x69mm | 570x1170x69mm | 610x1220x69mm |
| Efficiency | 99.99% 0.3μm | ||||
| Frame | High Quality Anodized Aluminum | ||||
| Initial Pressure Drop | 110Pa@0.45m/s±15% | ||||
| Trait | PU Foam Endless Gasket | ||||
Quality Control
All tested according to the of ISO 14644-1 before Package.
Applications
FFU is used in semiconductor,electron,flat-panel display,disc-drive,manufacture and optics,bio-engineering,clean bench,clean room,and any other places
