Product Details:
|
| Antistop: | Cleanroom Fan Filter Unit | Another Name: | FFU |
|---|---|---|---|
| Material: | Aluminum | Control Method: | Group Control Dy Computer |
| Delivery Inspect Video: | Provide | After Sale Serve: | Online Support |
| Highlight: | Class 100 Min FFU Fan Filter Unit,100Watt FFU Fan Filter Unit,Class 100 hepa fan filter unit |
||

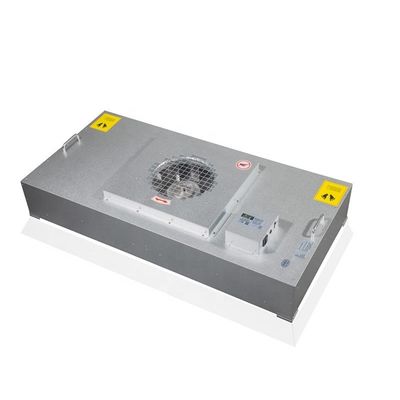

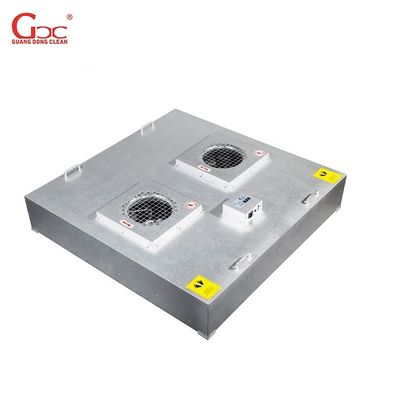

Cleanroom fan filter unit (FFU) is an air self-cleaning device that is equipped with both a primary and high-efficiency two-stage filter device. The air intake comes through the fan top, and is filtered through the two stage filter device. Clean air is then sent out through the outlet.
The device can be installed indoors on the ceiling or mounted on a shelf. It can also be arranged in a single or multiple assembly lines, so that the purification level reaches class 100 according to different requirements. In addition, the FFU can also be used to supply air for the terminal in a clean room.
Features
1. Simple direct speed control,
2. Low power consumption,
3. Low sound power level,
4. EC Fan with high reserve capacity for pre- and AMC filtration,
5. Very low design height,
6. The degree of cleanness from class 10 to class 1000 can be set and the degree of cleanness can be set at each area.
Parameters
| Item | GCC-FFUA-1 | GCC-FFUA-2 | GCC-FFUA-3 | GCC-FFUA-4 | |
| Size (WxLxH) | 575x875x275mm | 920x615x275mm | 575x1175x275mm | 615x1225x275mm | |
| Air Flow | 800~900m³/h | 800~900m³/h | 1100~1200m³/h | 1100~1200m³/h | |
| Air Velocity | 0.35~0.55m/s | ||||
| Total Pressure | 230Pa | 230Pa | 230Pa | 230Pa | |
| Power | 100W | 100W | 100W | 100W | |
| Weight | 25kgs | 27.5kgs | 34kgs | 37.5kgs | |
| Noise (1m below the HEPA filter) |
55~63dB | ||||
| Vibration | 0.2~0.7mm/s | ||||
| Control Mode | Manually Or Group Control Dy Computer | ||||
| Options |
DOP Inject Port / DOP Sample Port / Differential Pressure Drop Test Port / Differential Pressure Drop Alarm Device |
||||
| HEPA Filter | Size (WxHxD) | 570x870x69mm | 915x610x69mm | 570x1170x69mm | 610x1220x69mm |
| Efficiency | 99.99% 0.3μm | ||||
| Frame | High Quality Anodized Aluminum | ||||
| Initial Pressure Drop | 110Pa@0.45m/s±15% | ||||
| Trait | PU Foam Endless Gasket | ||||
Application
Semiconductor, electron, flat-panel display, disc-drive, manufacture and optics, bio-engineering, clean bench, clean room, or any other places.
